High-performance serial I/O controller featuring 4 transceivers and a single UART interface. This CMOS IC supports a 480Mbps data rate and operates from a 1.62V to 3.63V supply range, with a typical 3.3V dual supply. The QFN-64 package is designed for surface mount applications and includes ESD protection. This RoHS compliant component is supplied on tape and reel, with a package quantity of 4000.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Ftdi FT4232HQ-REEL technical specifications.
General
| Package/Case | QFN |
| Data Rate | 480Mbps |
| Dual Supply Voltage | 3.3V |
| ESD Protection | Yes |
| Height | 0.85mm |
| Interface | UART |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 1.62V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Transceivers | 4 |
| Operating Supply Current | 70mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | USBmadeEZ-FIFO |
| Weight | 0.007277oz |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Ftdi FT4232HQ-REEL Datasheet
Download the complete datasheet for Ftdi FT4232HQ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

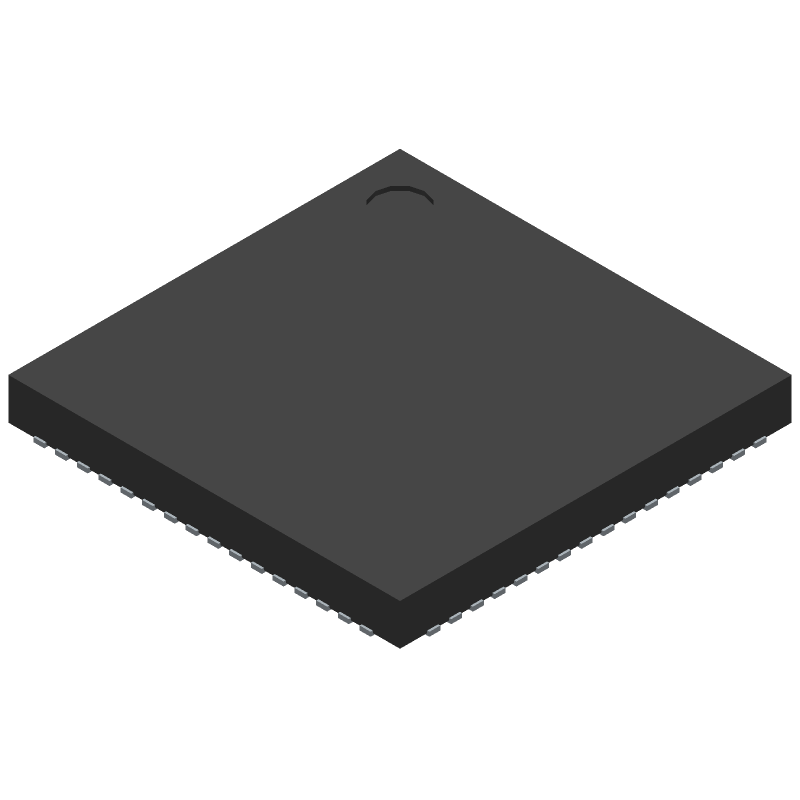

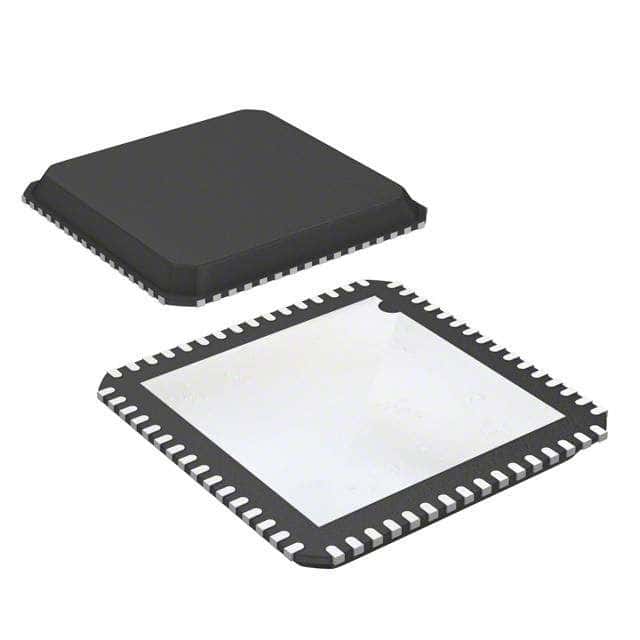

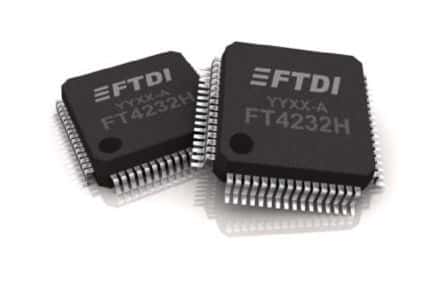

Product Images
