Technical Specifications
Fujitsu FTR-F3AA005E-HA technical specifications.
General
| Coil Current | 40mA |
| Coil Resistance | 125R |
| Coil Voltage (DC) | 5V |
| Contact Material | Silver |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Power Consumption | 200mW |
| RoHS Compliant | No |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 4g |
Compliance
| RoHS | Not Compliant |
Datasheet
Fujitsu FTR-F3AA005E-HA Datasheet
Download the complete datasheet for Fujitsu FTR-F3AA005E-HA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

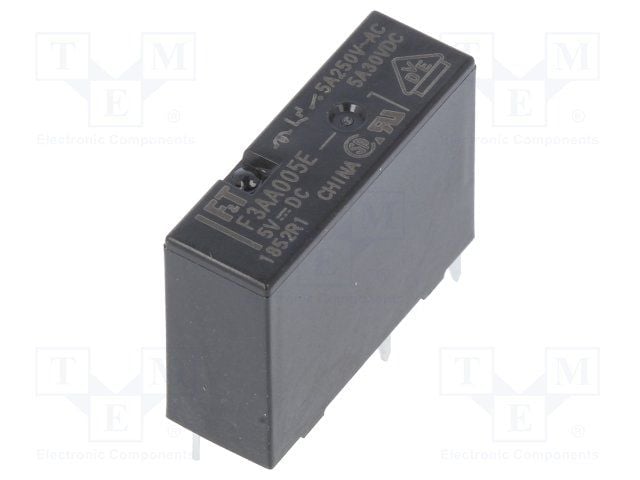

Product Images
