SPDT general purpose electromechanical relay featuring a 12VDC coil with 33.33mA current and 400mW power consumption. This through-hole mount relay offers a 16A contact rating at 24VDC, with AC/DC output capabilities up to 440VAC or 300VDC. Contact material is Tin/Silver, and the unit has a 15ms operate time. Operating temperature range is -40°C to 85°C, with a mechanical life of 30,000 hours.
PackageDIP
MountingPCB, Through Hole
Power4mW
Quick Jump:
Technical Specifications
Fujitsu FTR-K1CK012W technical specifications.
General
| Application(s) | POWER |
| Package/Case | DIP |
| Coil Current | 33.33mA |
| Coil Power | 400mW |
| Coil Resistance | 360R |
| Coil Voltage (DC) | 12V |
| Contact Material | Tin, Silver |
| Contact Type | 1 change-over |
| Depth | 12.7mm |
| Height | 15.7mm |
| Length | 29mm |
| Life (Hours) | 30Hour |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 300V |
| Mount | PCB, Through Hole |
| Operate Time | 15ms |
| Power Consumption | 4mW |
| RoHS Compliant | Yes |
| Termination | Solder |
| Throw Configuration | SPDT |
| Weight | 13g |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Fujitsu FTR-K1CK012W Datasheet
Download the complete datasheet for Fujitsu FTR-K1CK012W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

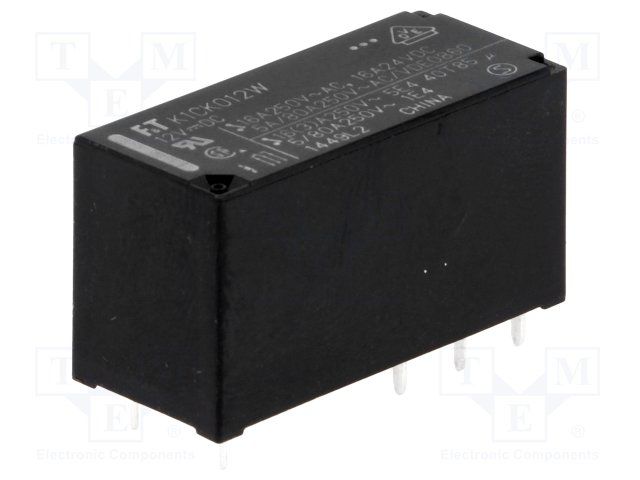

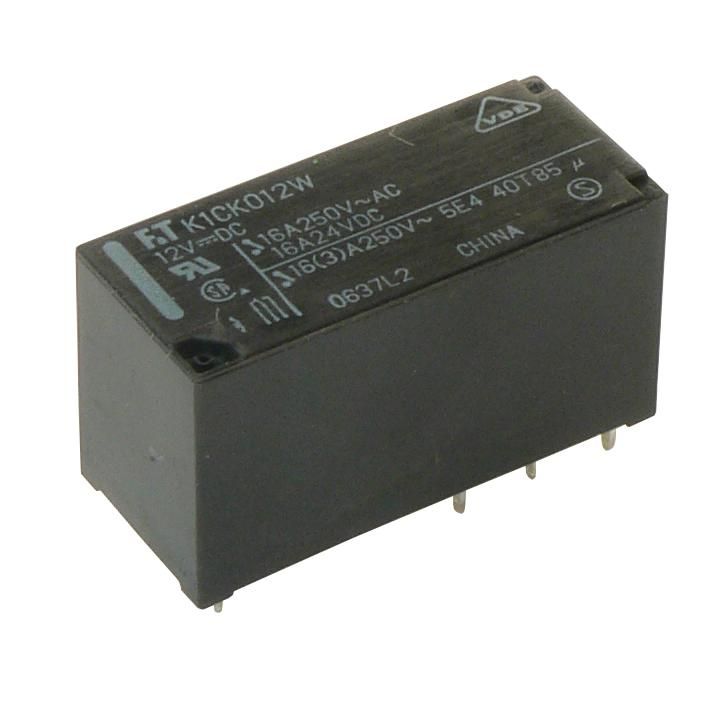

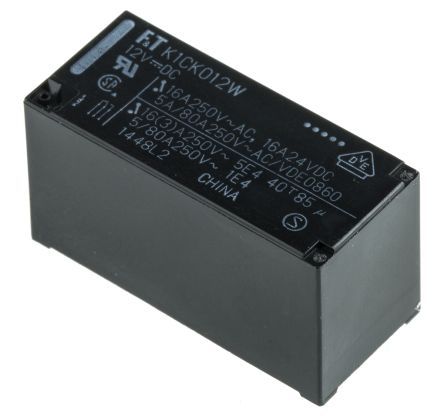

Product Images
