This electromechanical relay is a single pole single throw (SPST) type with a contact current rating of 5A and a voltage rating of 250V AC. It has a coil resistance of 45 ohms and a coil voltage of 3V DC. The relay operates in 8 milliseconds and consumes 200 milliwatts of power. It is available in a DIP package with a length of 17.5mm and a depth of 10mm. The operating temperature range is from -40°C to 70°C.
PackageDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Fujitsu JV-3S-KT technical specifications.
General
| Package/Case | DIP |
| Coil Current | 66.67mA |
| Coil Resistance | 45R |
| Coil Voltage (DC) | 3V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Gold |
| Depth | 10mm |
| Length | 17.5mm |
| Manufacturer Series | JV |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operate Time | 8ms |
| Power Consumption | 200mW |
| Relay Function | SPST |
| RoHS Compliant | No |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Type | Electromechanical |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Not Compliant |
Datasheet
Fujitsu JV-3S-KT Datasheet
Download the complete datasheet for Fujitsu JV-3S-KT to view detailed technical specifications.
No datasheet is available for this part.

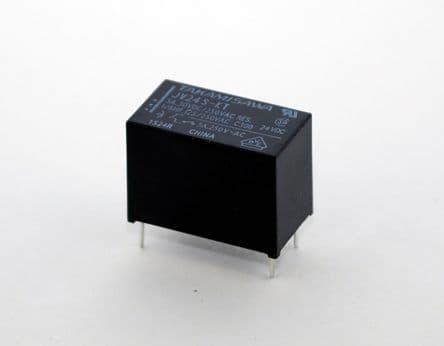

Product Images
