Enclosed AC/DC power supply, 2.725kW output power, 54V nominal output voltage, and 37A maximum output current. Features 95% efficiency, 3kV isolation voltage, and operates from 90V to 305V AC input. Supports PMBus and I²C communication interfaces. Chassis mountable with dimensions of 13.85 inches length, 4 inches width, and 1.63 inches height. Compliant with CE and RoHS standards.
MountingChassis Mount
Power2.725kW
Quick Jump:
Technical Specifications
GE CP2725AC54TEZ technical specifications.
General
Approvals
CE
Current - Output 1
25A
Depth
101.6mm
Efficiency
95%
Features
PMBus, I²C
Height
1.63inch
Isolation Voltage
3kV
Length
13.85inch
Max Input Voltage
305V
Min Input Voltage
90V
Max Operating Temperature
75°C
Min Operating Temperature
-10°C
Max Output Current
37A
Max Output Power
2.725kW
Max Power Dissipation
2.725kW
Mount
Chassis Mount
Nominal Output Voltage
54V
Number of Outputs
1
Output Current
50.5A
Output Power
2.725kW
Output Voltage
54V
Package Quantity
1
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
CP
Voltage - Output 1
54V
Voltage - Output 2
5V
Weight
4.6lb
Width
4inch
Compliance
RoHS
Compliant
Datasheet
GE CP2725AC54TEZ Datasheet
Download the complete datasheet for GE CP2725AC54TEZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

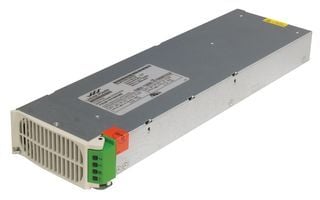

Product Images
