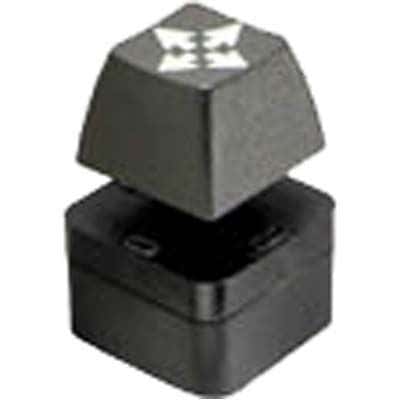

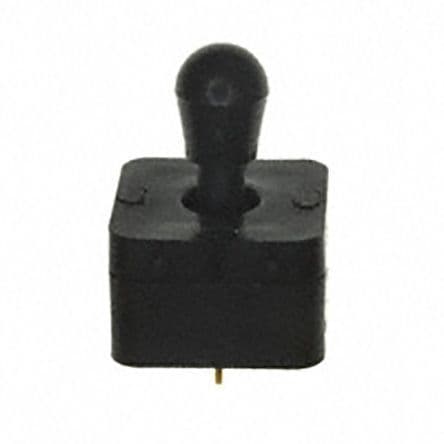

Four-way joystick switch featuring a polyester actuator and bronze contacts with gold plating. Rated for 250mA at 115V AC/DC, with an electrical life of 500,000 cycles. Designed for PCB mounting via through-hole termination, this 4PST switch operates across a temperature range of -40°C to 85°C. Dimensions are 21.59mm x 21.59mm x 21.6mm. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 04A-K01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 04A-K01 technical specifications.
| Actuator Material | Polyester |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 250mA |
| Depth | 21.59mm |
| Electrical Life | 500000Cycles |
| Illumination Color | Black |
| Lead Free | Lead Free |
| Length | 21.59mm |
| Max Current Rating | 250mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 220V |
| Mount | Through Hole, PCB |
| Number of Axes | 2 |
| Number of Poles | 4 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 04 |
| Termination | PC Pins |
| Throw Configuration | 4PST |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 115V |
| Width | 21.6mm |
| RoHS | Compliant |
