Technical Specifications
Grayhill 04J-AS-T11 technical specifications.
General
Contact Material
Nickel
Contact Plating
Gold
Electrical Life
100000Cycles
Max Operating Temperature
85°C
Mechanical Life
100000Cycles
Min Operating Temperature
-55°C
Mount
Panel
Operating Force
454gf
Ratings
IP68, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
04J
Termination
Solder
Voltage Rating (AC)
115V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Grayhill 04J-AS-T11 Datasheet
Download the complete datasheet for Grayhill 04J-AS-T11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

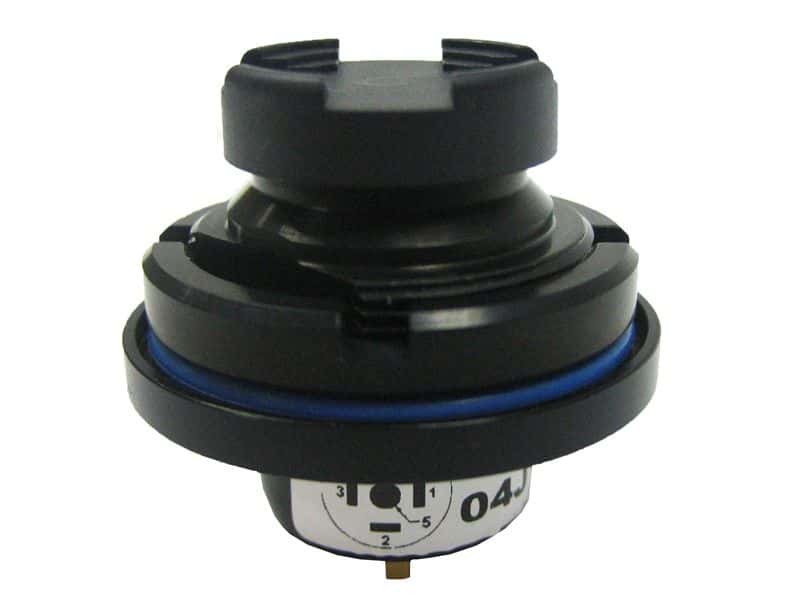

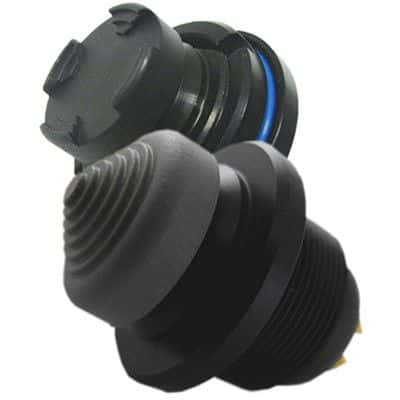

Product Images
