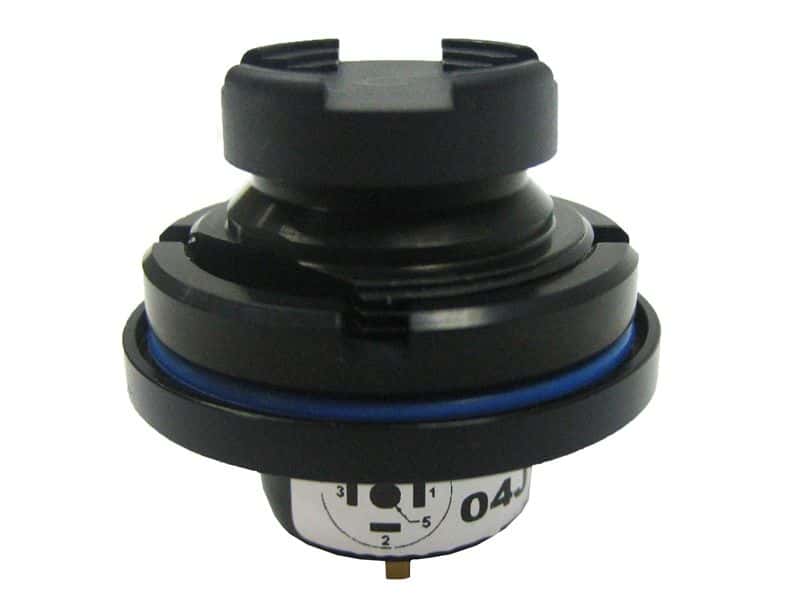

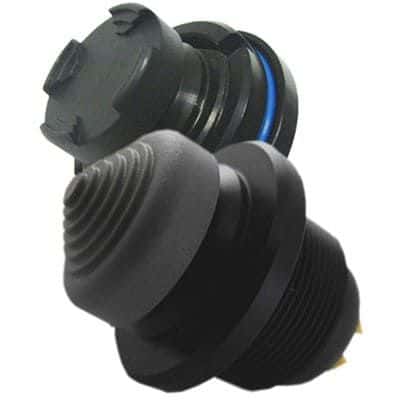

This 28V DC rated, 115V AC rated panel mount switch features nickel contact material with gold plating and a mechanical life of 100,000 cycles. The switch operates within a temperature range of -55°C to 85°C and is rated for 100,000 electrical cycles. It is compliant with IP68, waterproof, and dust tight standards and meets RoHS requirements.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 04J-BP-T01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Nickel |
| Contact Plating | Gold |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Operating Force | 454gf |
| Ratings | IP68, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 04J |
| Termination | PC Pin |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
