Technical Specifications
Grayhill 04J-BS-C01 technical specifications.
General
Contact Material
Nickel, Brass
Contact Plating
Gold, Silver
Electrical Life
100000Cycles
Max Operating Temperature
85°C
Mechanical Life
100000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
115V
Max Voltage Rating (DC)
28V
Mount
Panel
Operating Force
454gf
Packaging
Bulk
Radiation Hardening
No
Ratings
IP68, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
04J
Termination
Solder
Throw Configuration
SP5T
Voltage Rating (AC)
115V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Grayhill 04J-BS-C01 Datasheet
Download the complete datasheet for Grayhill 04J-BS-C01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

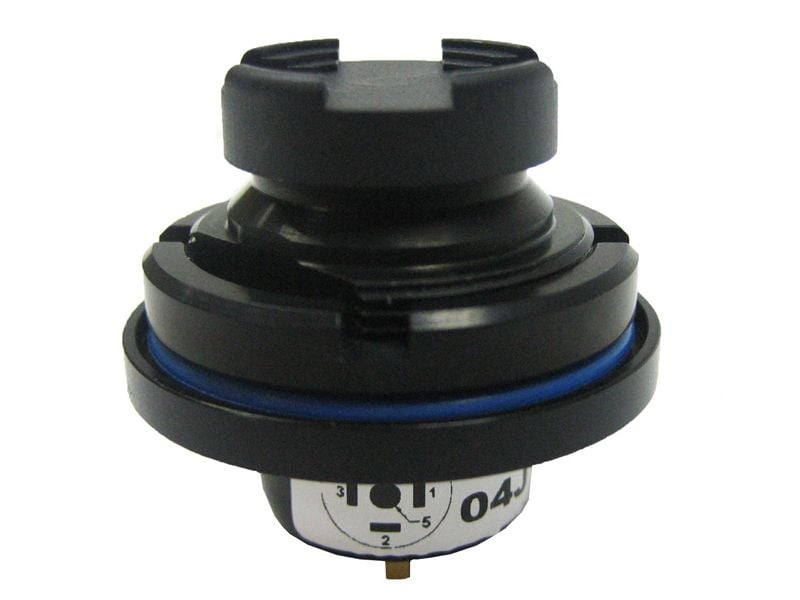

Product Images
