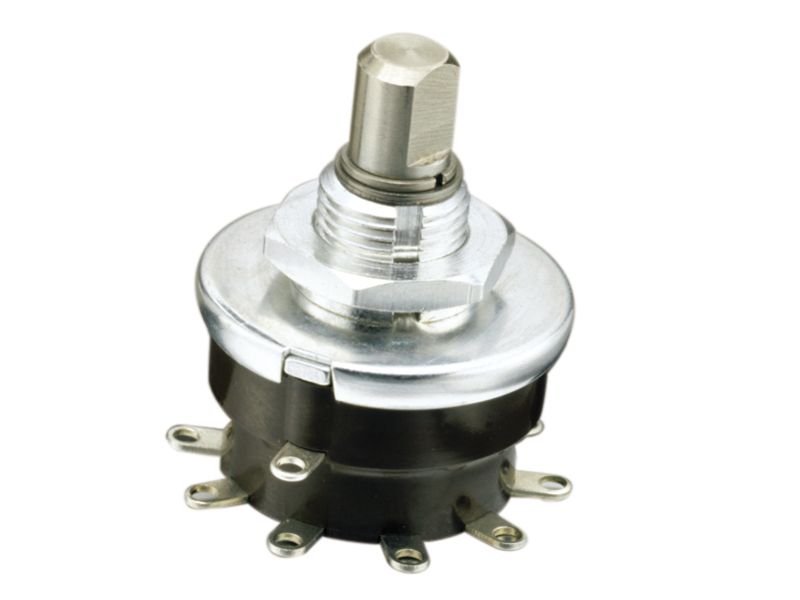

10-position, Single Pole 10 Throw (SP10T) rotary switch featuring a latched, on-on operation. This through-hole mounted component offers a 36° index angle, continuous index stops, and a steel shaft actuator with a 7.92mm length. It is rated for 1A at 28VDC and 115VAC, with a maximum AC voltage rating of 220V and a maximum DC voltage rating of 115V. Contact material is bronze with silver plating, and termination is via PC pins. RoHS compliant.
Current Rating1A
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
Grayhill 24878-10N technical specifications.
General
| Actuator Length | 7.92mm |
| Actuator Type | Shaft |
| Contact Material | Bronze |
| Contact Plating | Silver |
| Current Rating | 1A |
| Depth | 0.687inch |
| Illumination Type | Illuminated |
| Index Angle | 36° |
| Index Stops | Continuous |
| Lead Free | Lead Free |
| Length | 28.96mm |
| Max Voltage Rating (AC) | 220V |
| Max Voltage Rating (DC) | 115V |
| Mount | Through Hole, Panel |
| Number of Decks | 1 |
| Number of Poles | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 10 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 24 |
| Termination | PC Pin |
| Throw Configuration | SP10T, SP |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 24878-10N Datasheet
Download the complete datasheet for Grayhill 24878-10N to view detailed technical specifications.
