Grayhill
30-05-01-502-01
Illuminated Pushbutton Switch, SPST, 1A 220VAC, Momentary, White Round Button, PC Turret
Illuminated & Non-Illuminated Pushbutton Switch, SPST, momentary contact, rated for 1A at 220VAC. Features a white, round ABS actuator with a 6.48mm length. Designed for PC turret or through-hole panel mounting with straight orientation and solder termination. Offers an electrical life of 1,000,000 cycles and operates within a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Voltage Rating220V
Current Rating1A
MountingPanel, Front, Through Hole
Quick Jump:
Technical Specifications
Grayhill 30-05-01-502-01 technical specifications.
General
| Actuator Color | White |
| Actuator Length | 6.48mm |
| Actuator Material | ACRYLONITRILE BUTADIENE STYRENE |
| Actuator Type | Round, Button |
| Contact Current Rating | 1A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 220V |
| Current Rating | 1A |
| Electrical Life | 1000000Cycles |
| Lead Free | Lead Free |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 220V |
| Mount | Panel, Front, Through Hole |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 30 |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating | 220V |
| Voltage Rating (AC) | 115V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 30-05-01-502-01 Datasheet
Download the complete datasheet for Grayhill 30-05-01-502-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

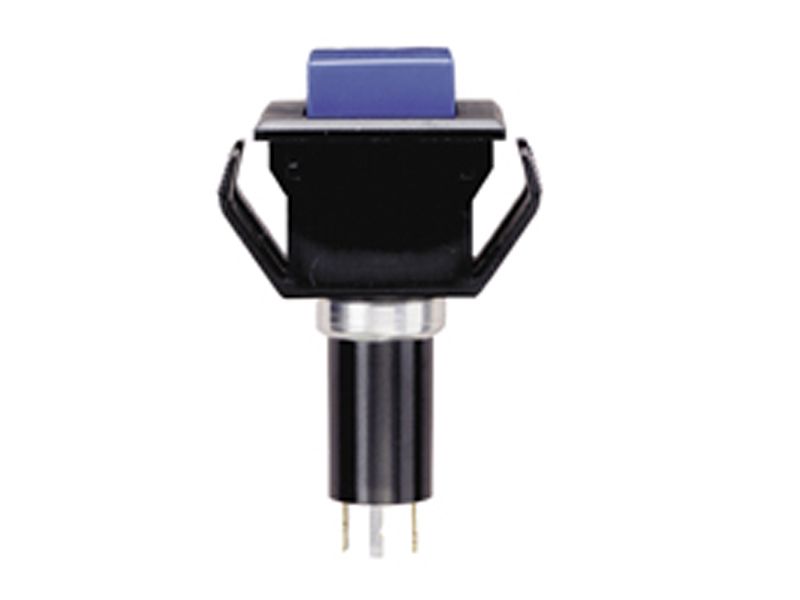

Product Images
