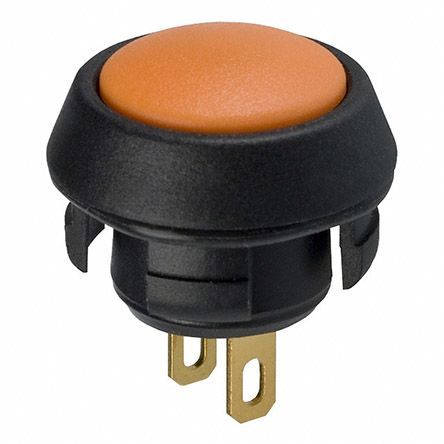

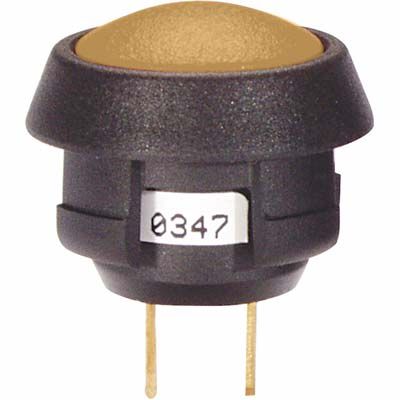

Illuminated pushbutton switch featuring a momentary, SPST contact configuration. Rated for 0.15A at 24VDC, this panel-mount switch boasts a gold-plated brass contact for reliable performance. The orange nylon and glass actuator is round with a 2.03mm length, and the unit offers a mechanical and electrical life of 500,000 cycles. Operating within a temperature range of -40°C to 80°C, this RoHS compliant component is UL and CSA approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 30-104 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Color | Orange |
| Actuator Length | 2.03mm |
| Actuator Material | Nylon, Glass |
| Actuator Type | Round, Button |
| Approvals | UL, CSA |
| Color | Orange |
| Contact Current Rating | 150mA |
| Contact Material | Brass, Gold |
| Contact Plating | Gold |
| Contact Voltage Rating (DC) | 24V |
| Current Rating | 150mA |
| Depth | 17.53mm |
| Diameter | 17.5mm |
| Electrical Life | 500000Cycles |
| Illumination Color | Orange |
| Lead Free | Lead Free |
| Length | 17.53mm |
| Max Current Rating | 150mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 500000Cycles |
| Mount | Panel, Snap in |
| Number of Poles | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 30 |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating | 24V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
