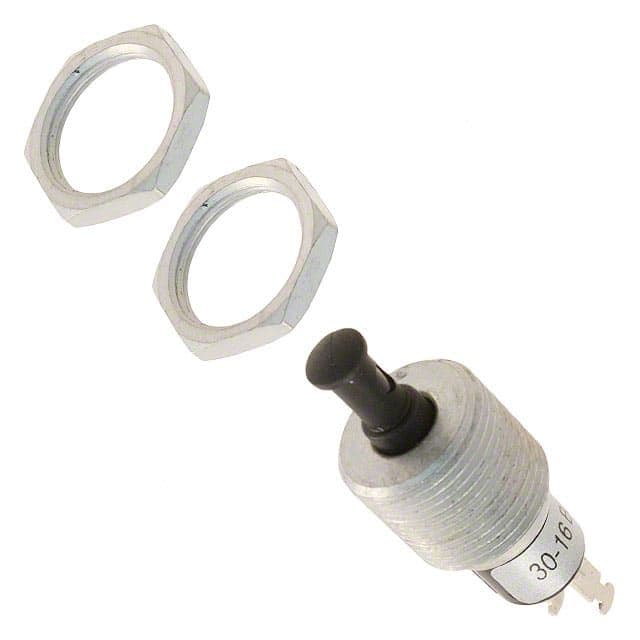

The 30-16BLK is a 14.29mm panel mount SPST switch with a current rating of 1A and a maximum operating voltage of 220V AC. It has a minimum operating temperature of -40°C and a maximum operating temperature of 85°C. The switch is made of polyester and is RoHS compliant. It is available in bulk packaging and has a termination of solder. The switch has a throw configuration of SPST and a switch function of off-on.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 30-16BLK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Material | Polyester |
| Current Rating | 1A |
| Depth | 14.29mm |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Length | 14.29mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 220V |
| Mount | Panel |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 30 |
| Switch Function | Off-On |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 115V |
| RoHS | Compliant |
