Grayhill
30-201C
Switch Push Button N.O. SPST Curved Round Button 0.15A 24VDC Momentary Contact Panel Mount Solder Lug
Current Rating150mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Grayhill 30-201C technical specifications.
General
Actuator Type
Round, Button
Current Rating
150mA
Electrical Life
500000Cycles
Max Operating Temperature
80°C
Mechanical Life
500000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
24V
Mount
Panel, Front
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
30
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
DC Rated Voltage
24V
Compliance
RoHS
Compliant
Datasheet
Grayhill 30-201C Datasheet
Download the complete datasheet for Grayhill 30-201C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

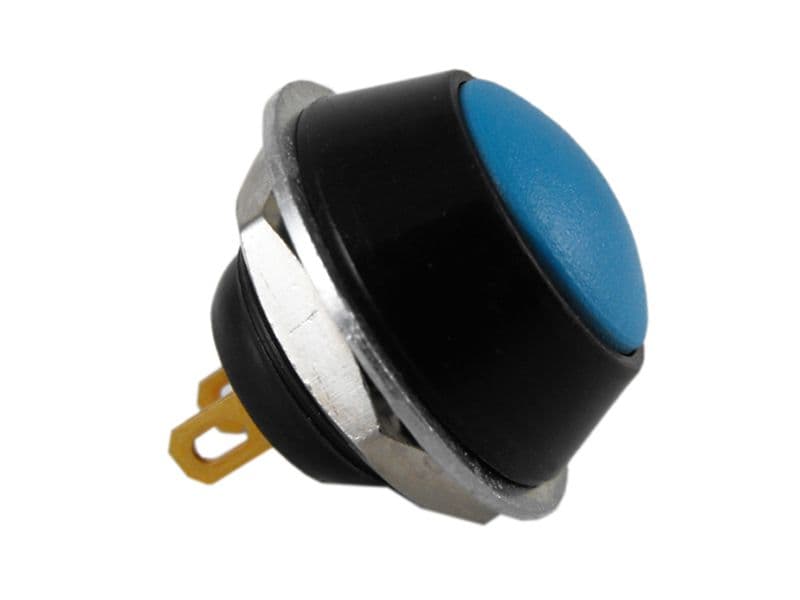

Product Images
