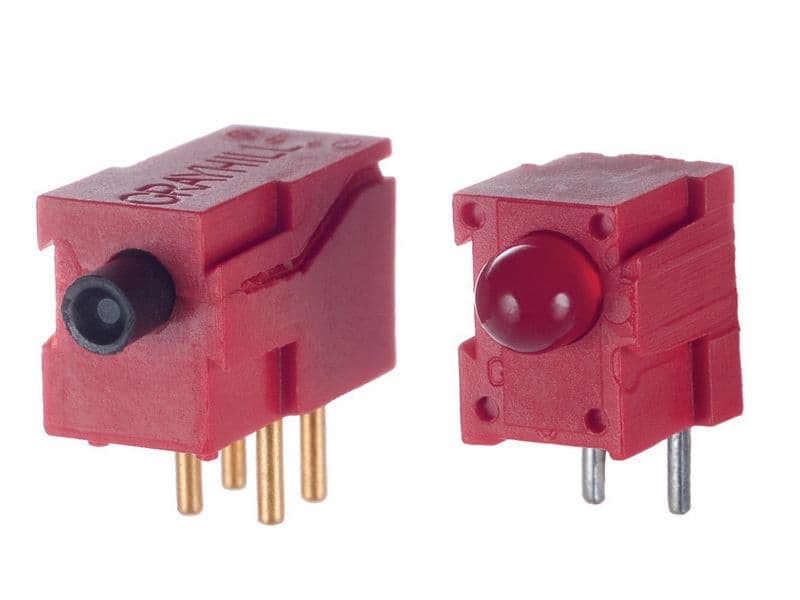

Illuminated pushbutton switch featuring a momentary contact, SPST/DPST throw configuration, and a round plunger actuator. Rated for 0.15A at 28VDC, this through-hole mounted component utilizes gold-plated brass contacts for reliable performance. Designed for PCB integration, it offers an electrical life of 100,000 cycles and operates within a temperature range of -40°C to 85°C. This RoHS compliant switch is UL approved and features LED illumination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 32-02 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 32-02 technical specifications.
| Actuator Color | Black |
| Actuator Length | 2.29mm |
| Actuator Material | Polyester |
| Actuator Type | PLUNGER |
| Approvals | UL |
| Contact Current Rating | 150mA |
| Contact Material | Brass, Gold |
| Contact Plating | Gold |
| Contact Voltage Rating (DC) | 28V |
| Current Rating | 150mA |
| Electrical Life | 100000Cycles |
| Illumination Type | LED |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 32 |
| Termination | PC Pin |
| Throw Configuration | DPST, SPST |
| Voltage Rating | 28V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
