DPDT toggle switch featuring PC pin termination for PC mounting with threads. Rated for 5A at 250VAC/28VDC, this non-illuminated switch offers an electrical life of 40,000 cycles. It includes a standard round brass, chrome-plated actuator with a 5.08mm length and silver-plated copper alloy contacts. Operating temperature range is -30°C to 85°C.
Current Rating5A
MountingPanel
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Grayhill 34ADP12B1M2QT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Grayhill 34ADP12B1M2QT technical specifications.
General
| Actuator Length | 5.08mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Current Rating | 5A |
| Depth | 11.43mm |
| Electrical Life | 40000Cycles |
| Illumination Type | Non-Illuminated |
| Length | 12.7mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mount | Panel |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 34A |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 34ADP12B1M2QT Datasheet
Download the complete datasheet for Grayhill 34ADP12B1M2QT to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

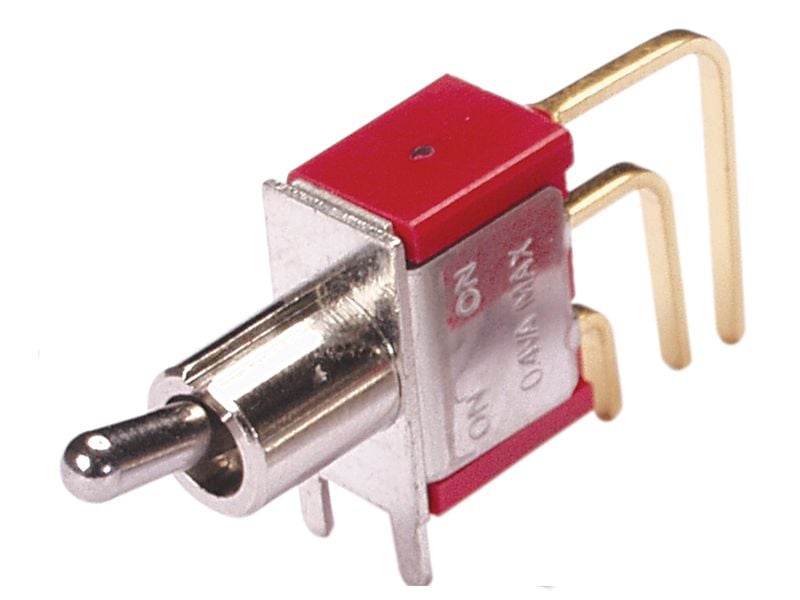

Product Images
