Technical Specifications
Grayhill 34BW3P32B4M1RT technical specifications.
General
Actuator Length
7.6mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Copper Alloy
Contact Plating
Nickel, Gold
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
20V
Mount
Solder
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
34B
Switch Function
On-Off-On
Termination
Solder
Throw Configuration
3PDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 34BW3P32B4M1RT Datasheet
Download the complete datasheet for Grayhill 34BW3P32B4M1RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

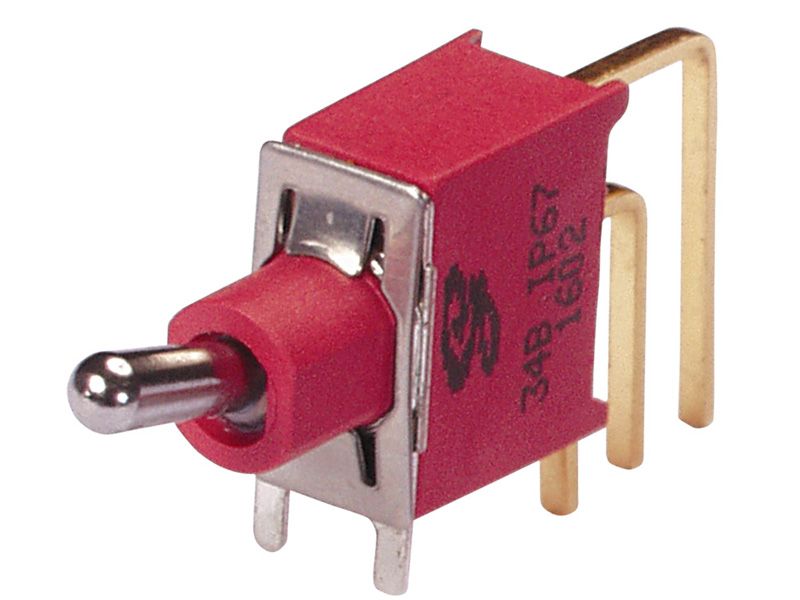

Product Images
