Grayhill
34BWSP11B1M7RT
Switch Toggle ON None ON SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket and Threads
MountingPanel, Vertical, Brackets
Quick Jump:
Technical Specifications
Grayhill 34BWSP11B1M7RT technical specifications.
General
Actuator Length
10.6mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Copper Alloy
Contact Plating
Nickel, Gold
Depth
40.45mm
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Panel, Vertical, Brackets
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
34B
Switch Function
On-On
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 34BWSP11B1M7RT Datasheet
Download the complete datasheet for Grayhill 34BWSP11B1M7RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

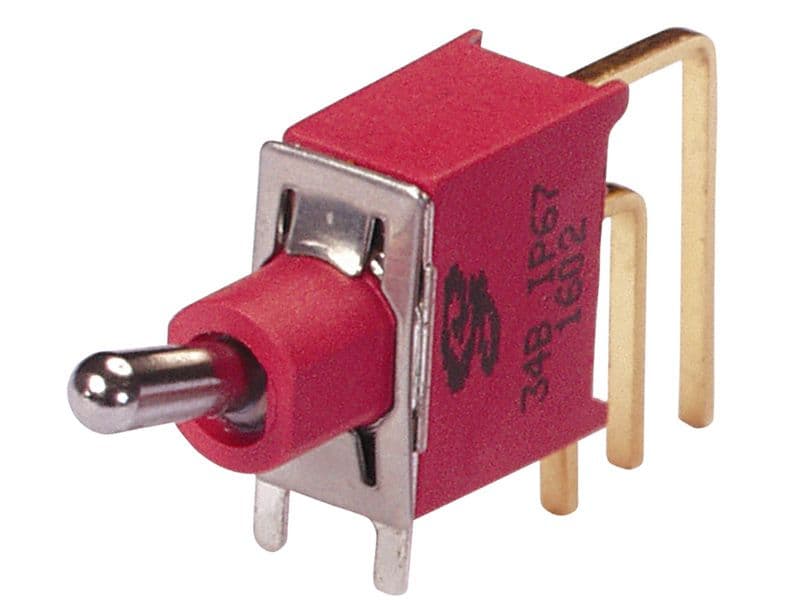

Product Images
