Grayhill
34BWSP12B1M2RT
Switch Toggle ON None ON SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Threads
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 34BWSP12B1M2RT technical specifications.
General
Actuator Length
5.5mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Copper Alloy
Contact Plating
Nickel, Gold
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
20V
Mount
Panel
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
34B
Switch Function
On-On
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 34BWSP12B1M2RT Datasheet
Download the complete datasheet for Grayhill 34BWSP12B1M2RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

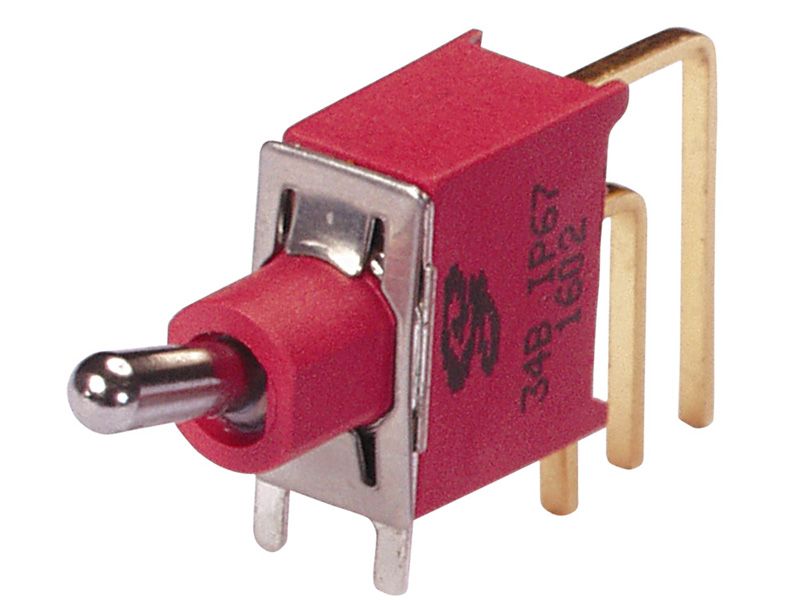

Product Images
