This standard round toggle switch features a copper alloy contact with nickel and gold plating, and a brass and chrome actuator. It has a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. The switch is rated for 50000 cycles of electrical life and is compliant with RoHS regulations. It is available in a bulk packaging option and is suitable for use in applications requiring IP67, waterproof, and dust-tight ratings.
MountingThrough Hole, Vertical, Brackets
Quick Jump:
Technical Specifications
Grayhill 34BWSP31B4M7RT technical specifications.
General
| Actuator Length | 12.6mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Copper Alloy |
| Contact Plating | Nickel, Gold |
| Electrical Life | 50000Cycles |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 20V |
| Mount | Through Hole, Vertical, Brackets |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 34B |
| Switch Function | On-Off-On |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 34BWSP31B4M7RT Datasheet
Download the complete datasheet for Grayhill 34BWSP31B4M7RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

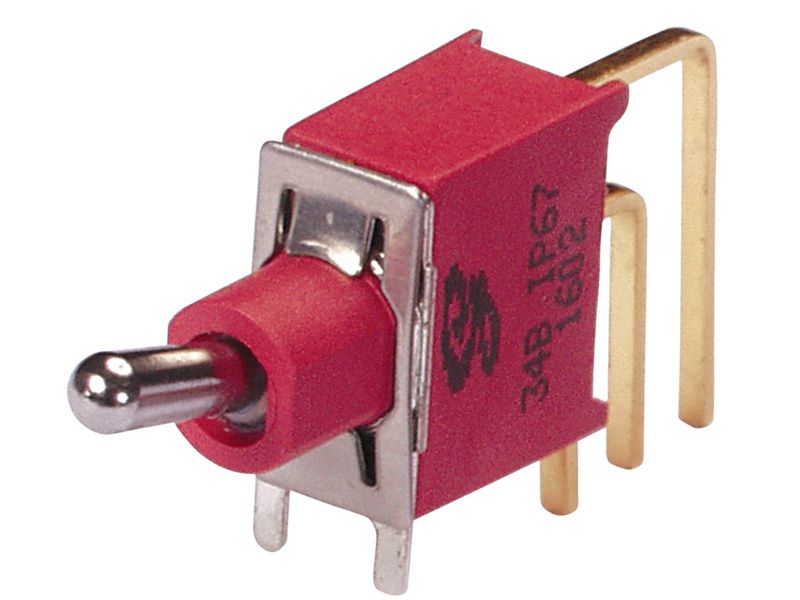

Product Images
