SPDT toggle switch with a non-illuminated, standard round brass, chrome-plated actuator. Features PC pin termination for vertical PC mounting with brackets, rated for 5A at 250VAC/28VDC with a 125VAC rating. Offers a robust electrical life of 50,000 cycles and IP67, waterproof, dust-tight sealing. Operates within a -30°C to 85°C temperature range.
MountingThrough Hole, Vertical, Brackets
Quick Jump:
Technical Specifications
Grayhill 34BWSP52B4M7QT technical specifications.
General
| Actuator Length | 7.6mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Silver |
| Depth | 34.9mm |
| Electrical Life | 50000Cycles |
| Illumination Type | Non-Illuminated |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole, Vertical, Brackets |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 34B |
| Switch Function | On-Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 34BWSP52B4M7QT Datasheet
Download the complete datasheet for Grayhill 34BWSP52B4M7QT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

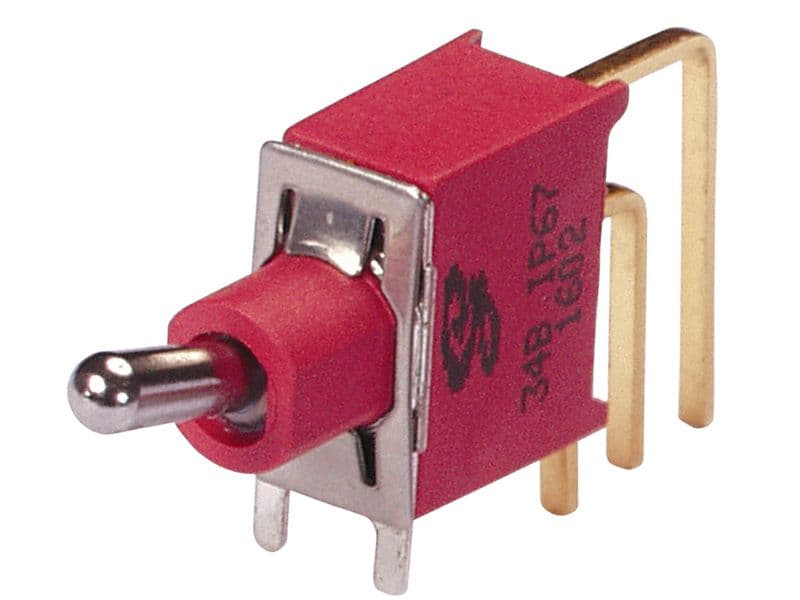

Product Images
