SPDT toggle switch featuring a non-illuminated, standard round brass lever with chrome plating. Rated for 3A and 20V AC/DC, with a contact current rating of 400mA. Offers a 2-position, On-On switching function and a right-angle orientation with PC pin termination for PCB mounting. Constructed with copper alloy contacts plated in nickel and gold, ensuring 30,000 electrical cycles. Operates within a temperature range of -30°C to 85°C and is UL approved and RoHS compliant.
Voltage Rating20V
Current Rating3A
MountingThrough Hole, Brackets, PCB
Quick Jump:
Technical Specifications
Grayhill 34CMSP12B2M6RT technical specifications.
General
| Actuator Color | Chrome |
| Actuator Length | 5.33mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Approvals | UL |
| Contact Current Rating | 400mA |
| Contact Material | Copper Alloy, Gold, Silver |
| Contact Plating | Nickel, Gold |
| Current Rating | 3A |
| Electrical Life | 30000Cycles |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Mount | Through Hole, Brackets, PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Right Angle |
| RoHS Compliant | Yes |
| Series | 34C |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating | 20V |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 34CMSP12B2M6RT Datasheet
Download the complete datasheet for Grayhill 34CMSP12B2M6RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

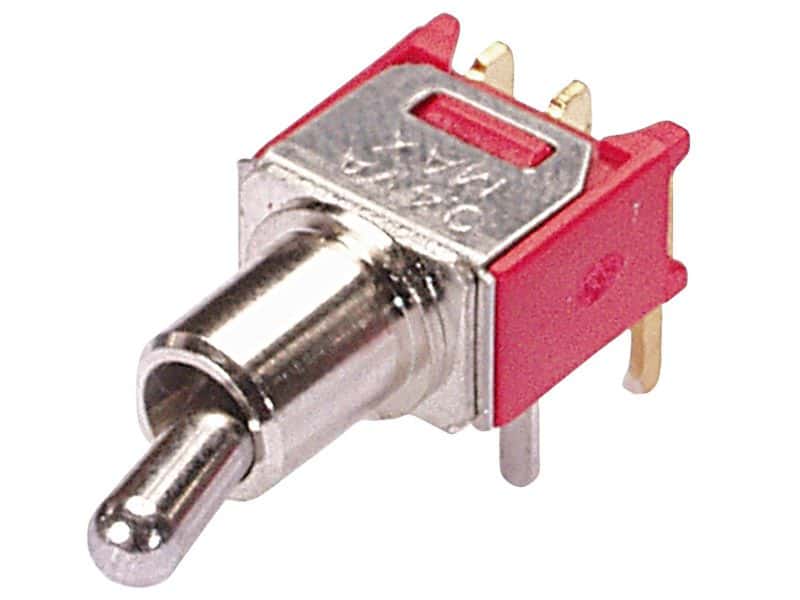

Product Images
