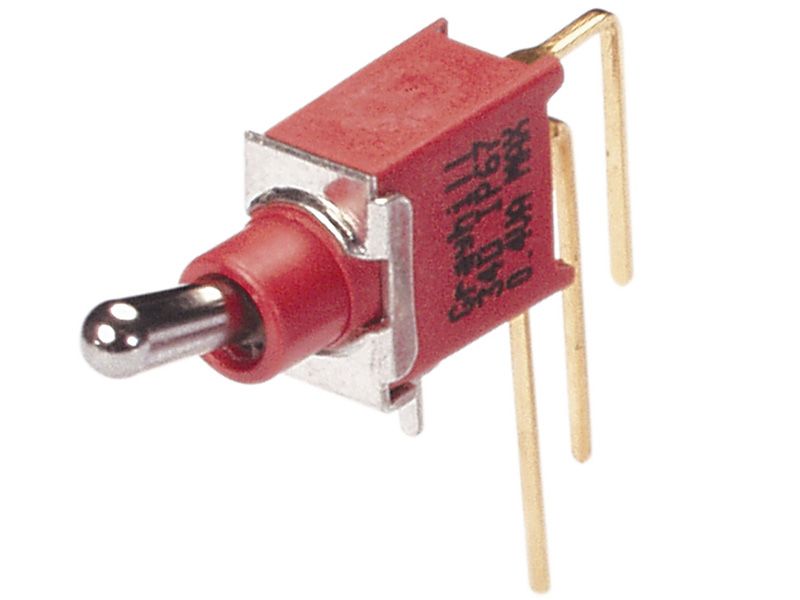

This 8.13mm on-on toggle switch from Grayhill features a standard round actuator made of brass and chrome, with a copper alloy contact plated with gold and silver. It has a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. The switch is rated for 3A and 28V DC, with a maximum voltage rating of 250V AC. It is IP67 rated, waterproof, and dust tight, and meets RoHS compliance requirements.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 34DWMSP13B4M2QT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 34DWMSP13B4M2QT technical specifications.
| Actuator Length | 8.7mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Silver |
| Depth | 5.08mm |
| Electrical Life | 30000Cycles |
| Illumination Type | Non-Illuminated |
| Length | 8.13mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 34D |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
