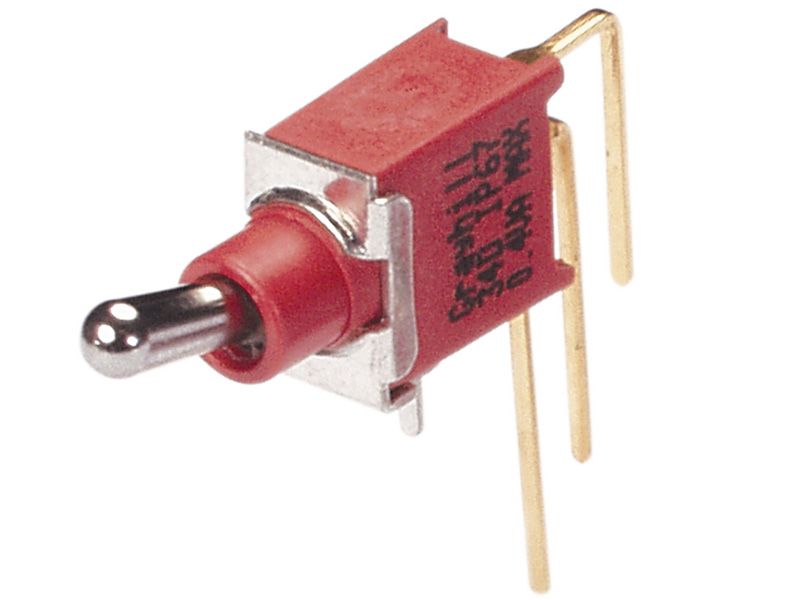

The Grayhill 34DWMSP22B4M6RT is a standard round toggle switch with a current rating of 3A and a maximum voltage rating of 20V. It features a through hole mount with brackets and is rated for IP67, making it waterproof and dust tight. The switch has a standard round actuator made of brass and chrome, with a copper alloy contact and nickel-gold plating. It operates within a temperature range of -30°C to 85°C and has a life expectancy of 30,000 cycles.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 34DWMSP22B4M6RT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 34DWMSP22B4M6RT technical specifications.
| Actuator Length | 6.1mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Copper Alloy |
| Contact Plating | Nickel, Gold |
| Current Rating | 3A |
| Electrical Life | 30000Cycles |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Mount | Through Hole, Brackets |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 34D |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
| RoHS | Compliant |
