Grayhill
34DWMSP26B4M6QT
Switch Toggle ON None (ON) SPDT Round Lever PC Pins 3A 250VAC 28VDC PC Mount with Bracket
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
Grayhill 34DWMSP26B4M6QT technical specifications.
General
Actuator Length
6.7mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Copper Alloy
Contact Plating
Gold, Silver
Electrical Life
30000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
28V
Mount
Through Hole, Brackets
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
34D
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Grayhill 34DWMSP26B4M6QT Datasheet
Download the complete datasheet for Grayhill 34DWMSP26B4M6QT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

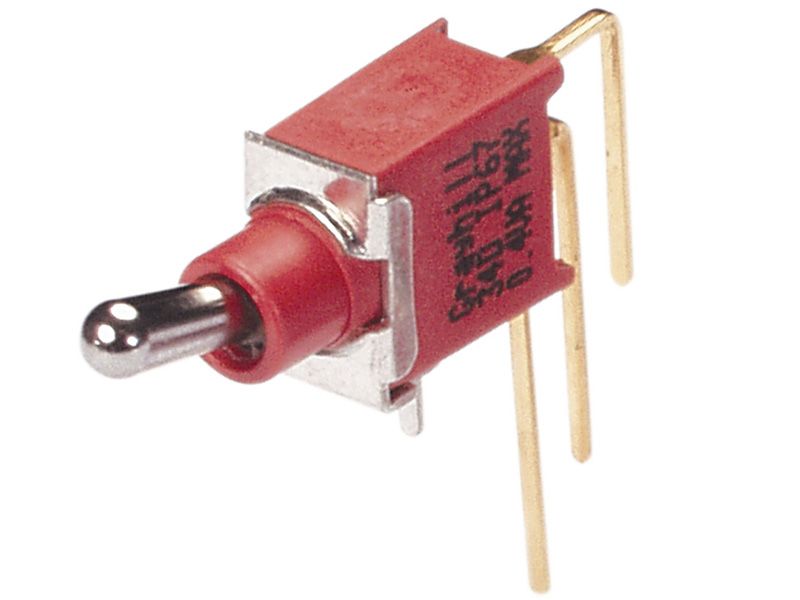

Product Images
