The Grayhill 34DWMSP42B4M6RT is a standard round toggle switch with a chrome actuator. It has a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. The switch is rated for 20V AC and DC and has an electrical life of 30,000 cycles. It is designed for through hole mounting with brackets and is compliant with IP67, waterproof, and dust tight ratings.
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
Grayhill 34DWMSP42B4M6RT technical specifications.
General
| Actuator Color | Chrome |
| Actuator Length | 6.1mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Copper Alloy |
| Contact Plating | Nickel, Gold |
| Electrical Life | 30000Cycles |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Mount | Through Hole, Brackets |
| Orientation | Right Angle |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 34D |
| Switch Function | Mom-Off-Mom |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 34DWMSP42B4M6RT Datasheet
Download the complete datasheet for Grayhill 34DWMSP42B4M6RT to view detailed technical specifications.
No datasheet is available for this part.

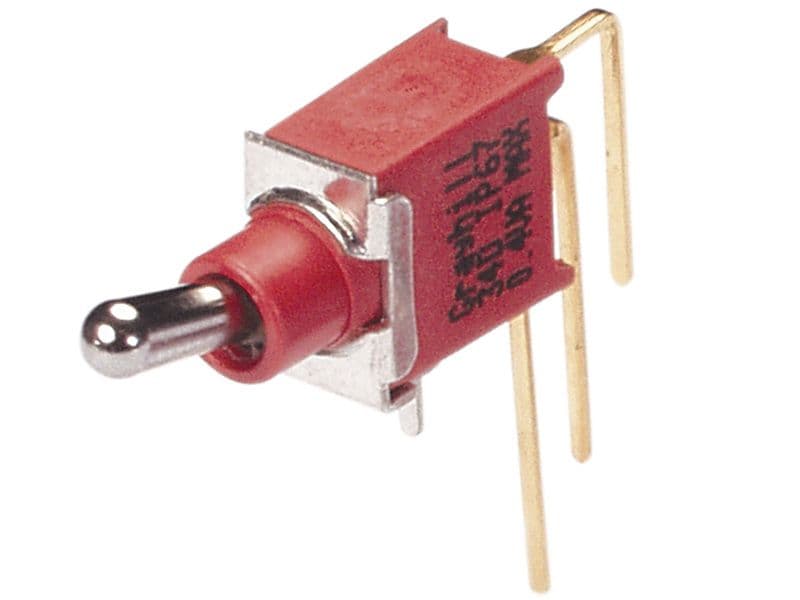

Product Images
