Grayhill
34DWMSP42B4M7RT
Switch Toggle (ON) OFF (ON) SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket
Current Rating3A
MountingThrough Hole, Vertical, Brackets
Quick Jump:
Technical Specifications
Grayhill 34DWMSP42B4M7RT technical specifications.
General
Actuator Length
6.1mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Copper Alloy
Contact Plating
Nickel, Gold
Current Rating
3A
Electrical Life
30000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
20V
Mount
Through Hole, Vertical, Brackets
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
34D
Switch Function
Mom-Off-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 34DWMSP42B4M7RT Datasheet
Download the complete datasheet for Grayhill 34DWMSP42B4M7RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

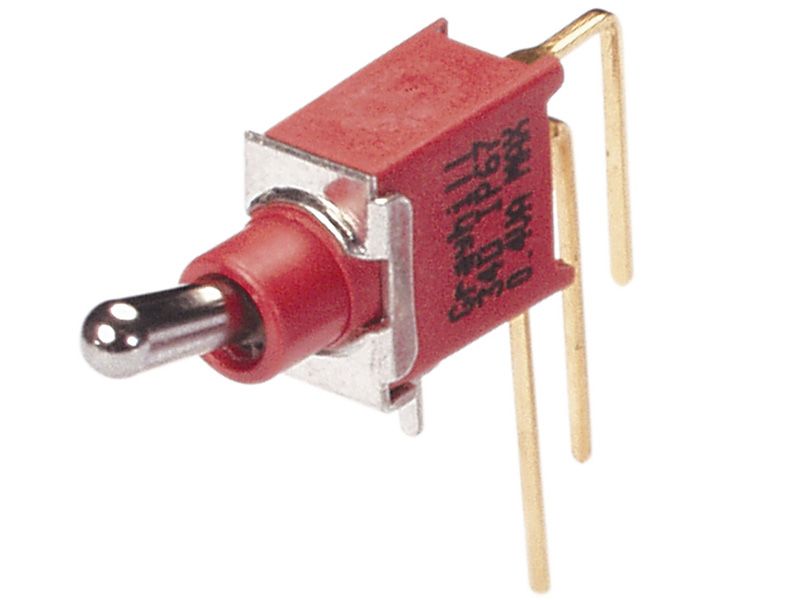

Product Images
