Grayhill
34EWMSP51M6RT
Switch Toggle ON OFF (ON) SPDT Round Lever Gull Wing 20VAC 20VDC 0.4VA PC Mount with Bracket T/R
MountingSurface Mount, Brackets
Quick Jump:
Technical Specifications
Grayhill 34EWMSP51M6RT technical specifications.
General
Actuator Length
10.8mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Copper Alloy
Contact Plating
Nickel, Gold
Electrical Life
30000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
85°C
Max Voltage Rating (DC)
20V
Mechanical Life
30000Cycles
Min Operating Temperature
-30°C
Mount
Surface Mount, Brackets
Packaging
Tape and Reel
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
34E
Switch Function
On-Off-Mom
Termination
Gull Wing
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 34EWMSP51M6RT Datasheet
Download the complete datasheet for Grayhill 34EWMSP51M6RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

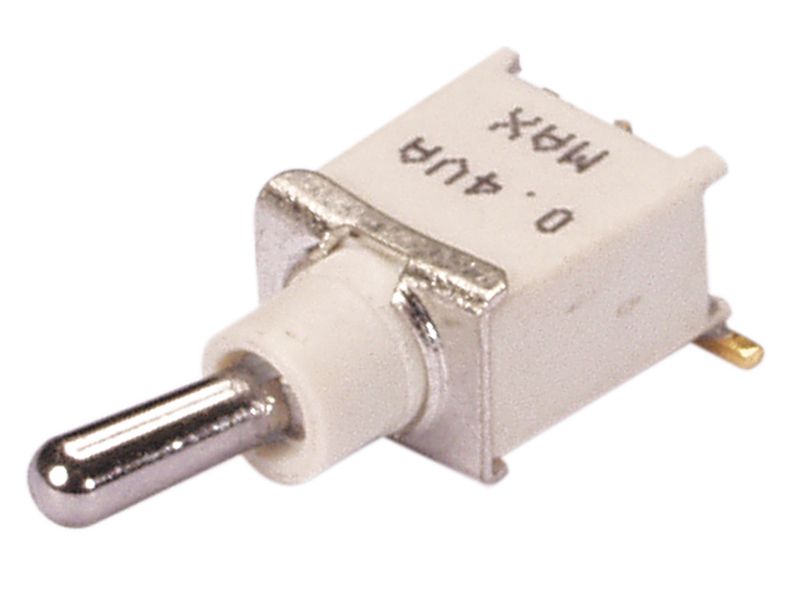

Product Images
