This panel mount piezo switch has a current rating of 2A and a DC rated voltage of 24V. It operates within a temperature range of -40°C to 85°C and has an operating force of 5N. The switch is rated for IP68, waterproof, and dust tight. It is available in a metal package with dimensions of 73mm in depth, 73mm in width, and 9mm in height. The switch is not radiation hardened and contains lead.
PackageMetal
Current Rating2A
MountingPanel, Front
Quick Jump:
Technical Specifications
Grayhill 37F1-AB2-AC1 technical specifications.
General
| Package/Case | Metal |
| Current Rating | 2A |
| Depth | 73mm |
| Height | 9mm |
| Illumination Type | Non-Illuminated |
| Lead Free | Contains Lead |
| Length | 93mm |
| Material | Aluminium |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Front |
| Operating Force | 5N |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP68, Waterproof, Dust Tight |
| Series | 37F |
| Switch Type | PIEZO |
| Termination | Cable |
| DC Rated Voltage | 24V |
| Width | 73mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Grayhill 37F1-AB2-AC1 Datasheet
Download the complete datasheet for Grayhill 37F1-AB2-AC1 to view detailed technical specifications.
No datasheet is available for this part.

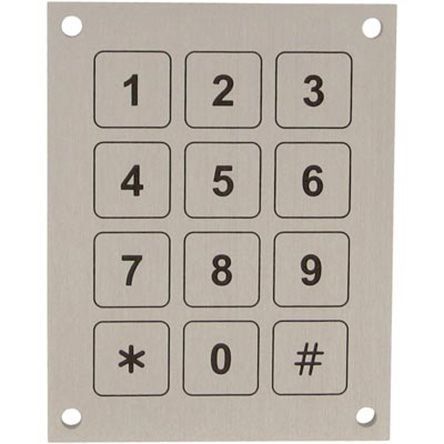

Product Images
