Grayhill
38DSP12BDV2RT
Switch Push Button ON None ON SPDT Round Plunger 20VAC 20VDC 0.4VA Alternate Contact Panel Mount/Bracket Mount PC Pins
MountingPanel, Brackets
Quick Jump:
Technical Specifications
Grayhill 38DSP12BDV2RT technical specifications.
General
Contact Material
Copper Alloy
Contact Plating
Nickel, Gold
Depth
8.13mm
Electrical Life
50000Cycles
Length
16.26mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Panel, Brackets
Packaging
Bulk
RoHS Compliant
Yes
Series
38D
Switch Function
On-On
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 38DSP12BDV2RT Datasheet
Download the complete datasheet for Grayhill 38DSP12BDV2RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

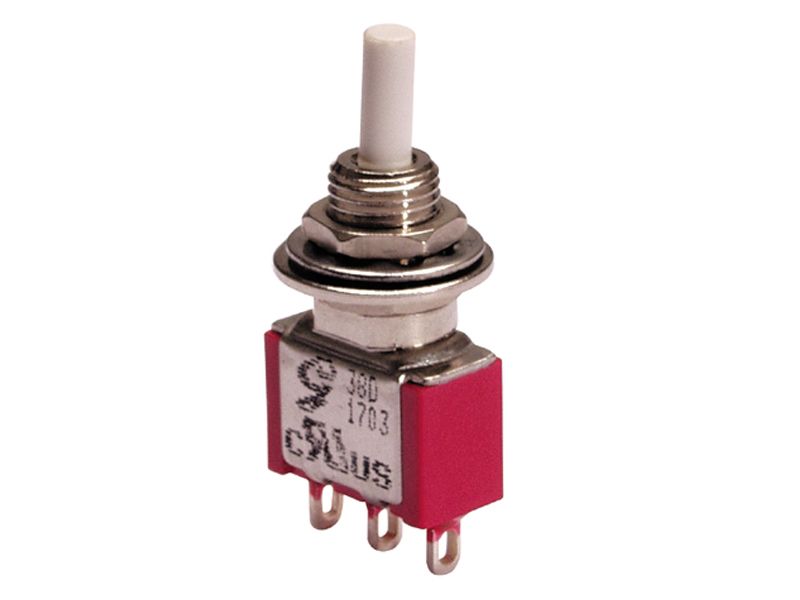

Product Images
