Grayhill
38EWSP71B4V4RT
Switch Push Button ON (ON) SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Bracket Mount/Through Hole PC Pins
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
Grayhill 38EWSP71B4V4RT technical specifications.
General
Contact Material
Copper Alloy
Contact Plating
Nickel, Gold
Depth
9.2mm
Electrical Life
50000Cycles
Length
19.56mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Through Hole, Brackets
Packaging
Bulk
Ratings
IP68, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
38E
Switch Function
On-Mom
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 38EWSP71B4V4RT Datasheet
Download the complete datasheet for Grayhill 38EWSP71B4V4RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

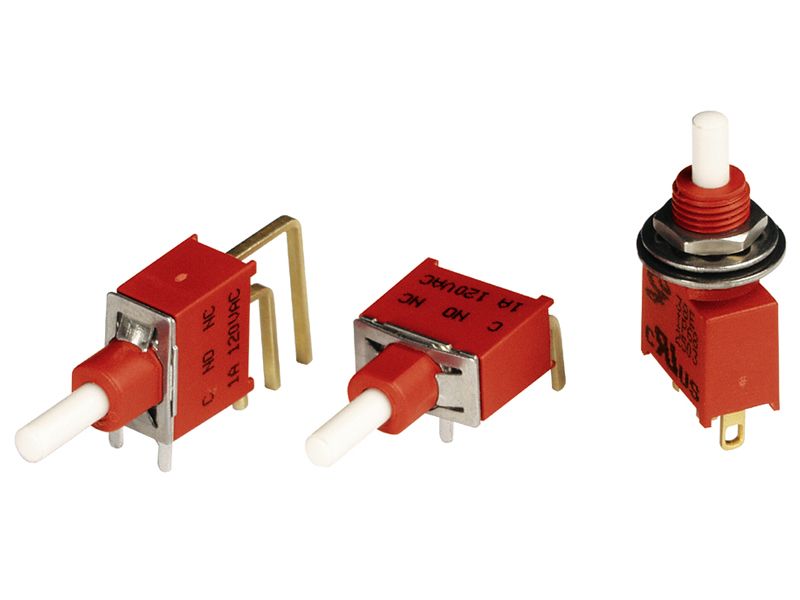

Product Images
