Grayhill
38EWSP73B4M7QT
Switch Push Button ON (ON) SPDT Round Plunger 1A 125VAC 28VDC Momentary Contact Thru-Hole PC Pins
Current Rating1A
MountingThrough Hole, Vertical
Quick Jump:
Technical Specifications
Grayhill 38EWSP73B4M7QT technical specifications.
General
Contact Material
Copper Alloy
Contact Plating
Silver
Current Rating
1A
Depth
31.95mm
Electrical Life
50000Cycles
Length
6.6mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
28V
Mount
Through Hole, Vertical
Packaging
Bulk
Radiation Hardening
No
Ratings
IP68, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
38E
Switch Function
On-Mom
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Grayhill 38EWSP73B4M7QT Datasheet
Download the complete datasheet for Grayhill 38EWSP73B4M7QT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

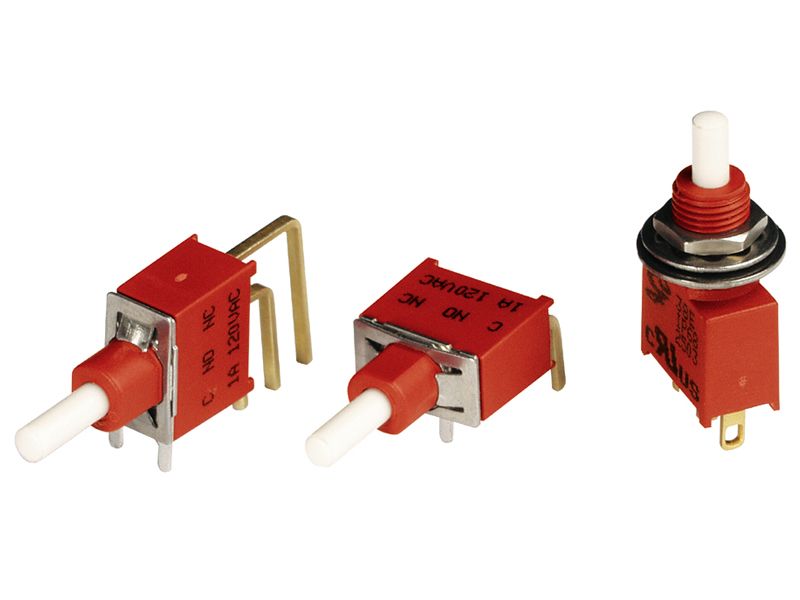

Product Images
