Technical Specifications
Grayhill 39-101-EW technical specifications.
General
| Contact Current Rating | 500mA |
| Contact Material | Bronze, Gold |
| Contact Voltage Rating (AC) | 220V |
| Electrical Life | 500000Cycles |
| Height | 21.3mm |
| Lead Free | Lead Free |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Poles | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 39 |
| Switch Function | Off-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPST |
| Voltage Rating | 220V |
| Voltage Rating (AC) | 115V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 39-101-EW Datasheet
Download the complete datasheet for Grayhill 39-101-EW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

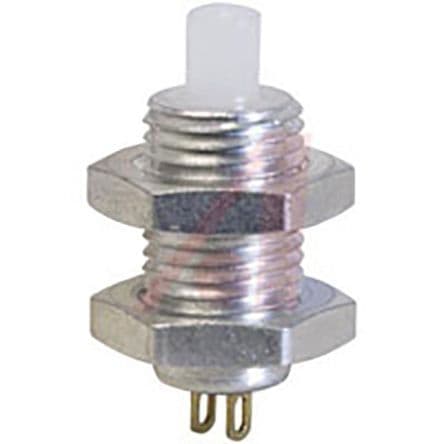

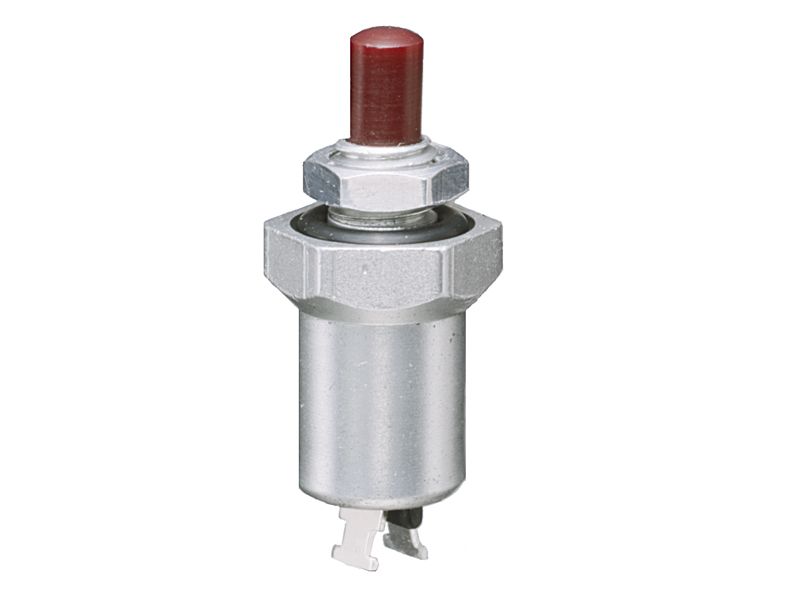

Product Images
