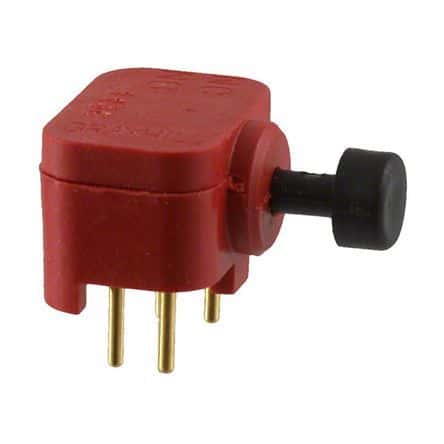

Illuminated pushbutton switch featuring a black, round nylon actuator with a 6.35mm length. This SPDT (Single Pole Double Throw) switch offers a 250mA contact current rating and a 220V AC / 28V DC contact voltage rating. Designed for through-hole mounting with right-angle orientation, it utilizes PC pin terminations and boasts an electrical life of 500,000 cycles. Operating within a temperature range of -40°C to 125°C, this RoHS compliant component is UL approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 39-261BLK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Color | Black |
| Actuator Length | 6.35mm |
| Actuator Material | Nylon |
| Actuator Type | Round, Button |
| Approvals | UL |
| Contact Current Rating | 250mA |
| Contact Material | Brass, Gold |
| Contact Voltage Rating (AC) | 220V |
| Contact Voltage Rating (DC) | 28V |
| Depth | 16.51mm |
| Electrical Life | 500000Cycles |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Max Current Rating | 250mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 220V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole |
| Number of Poles | 1 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 39 |
| Switch Function | On-Mom |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating | 220V |
| Voltage Rating (AC) | 115V |
| Width | 8.33mm |
| RoHS | Compliant |
