Technical Specifications
Grayhill 39-702-EW technical specifications.
General
| Actuator Length | 4.19mm |
| Actuator Material | Thermoplastic |
| Contact Material | Silver |
| Contact Plating | Gold |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 220V |
| Mount | Panel |
| Orientation | Straight |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 39 |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 115V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 39-702-EW Datasheet
Download the complete datasheet for Grayhill 39-702-EW to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

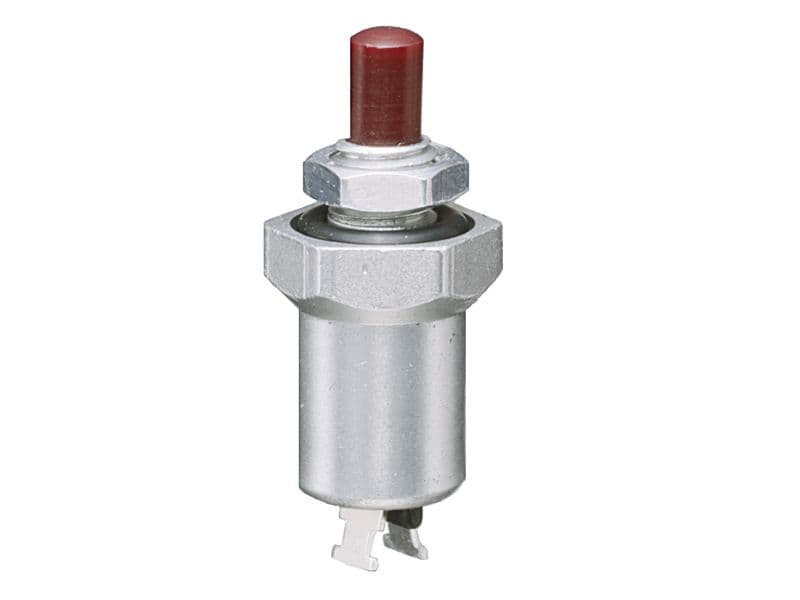

Product Images
