Grayhill
44A30-01-1-10N
Rotary Switch, 10 Positions, SP10T, Latched, 1A, 28VDC, Screw Terminal, Single Shaft Type Actuator, Panel Mount, ROHS COMPLIANT
Current Rating1A
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 44A30-01-1-10N technical specifications.
General
Actuator Length
11.1mm
Contact Material
Silver
Current Rating
1A
Index Angle
30°
Index Stops
Fixed
Max Voltage Rating (AC)
115V
Max Voltage Rating (DC)
115V
Mechanical Life
100000Cycles
Mount
Panel
Number of Decks
1
Number of Poles per Deck
1
Number of Positions
10
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
44
Termination
Solder
Throw Configuration
SP10T
Voltage Rating (AC)
115V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Grayhill 44A30-01-1-10N Datasheet
Download the complete datasheet for Grayhill 44A30-01-1-10N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

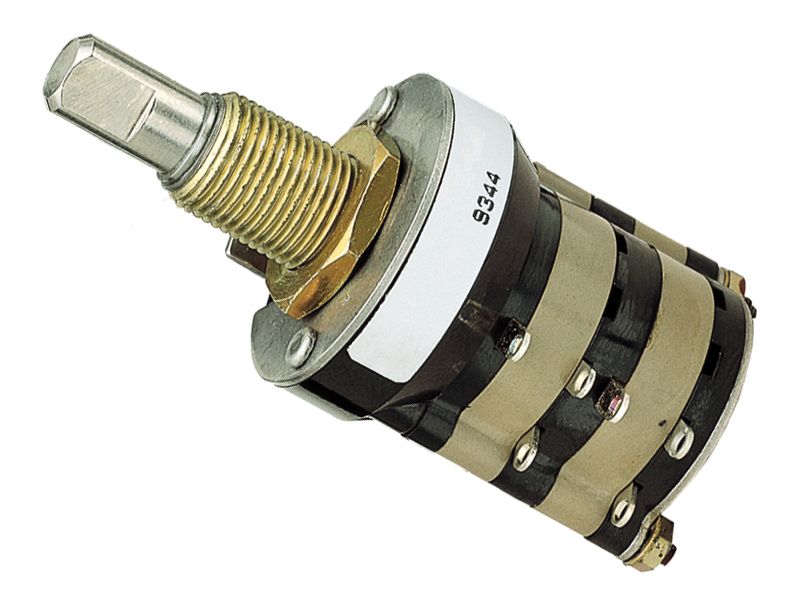

Product Images
