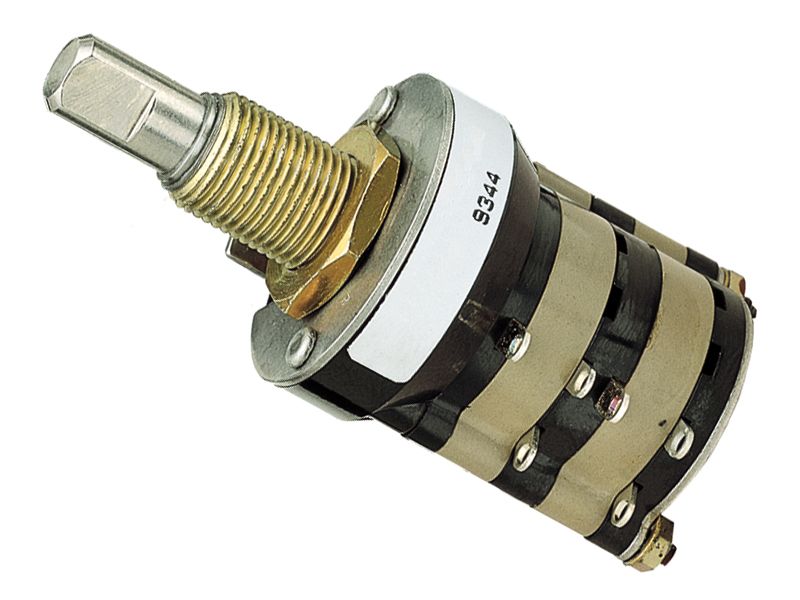

Rotary switch featuring 3 poles and 4 positions per deck, with a single deck configuration. Offers a 30° index angle and fixed index stops, providing 4 flatted shaft positions. Rated for 1A current and 115VAC/115VDC maximum voltage, with a DC rated voltage of 28V. Contact material is silver with a non-shorting contact style. Designed for panel mounting with solder lug termination and a straight orientation.
Current Rating1A
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 44A30-01-3-04N technical specifications.
General
Actuator Length
11.1mm
Actuator Material
Stainless Steel
Contact Material
Silver
Contact Style
Non-Shorting
Current Rating
1A
Electrical Life
25000Cycles
Index Angle
30°
Index Stops
Fixed
Max Voltage Rating (AC)
115V
Max Voltage Rating (DC)
115V
Mechanical Life
100000Cycles
Mount
Panel
Number of Decks
1
Number of Poles per Deck
3
Number of Positions
4
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
44
Termination
Solder
Throw Configuration
3P4T
Voltage Rating (AC)
115V
DC Rated Voltage
28V
Weight
48g
Compliance
RoHS
Compliant
