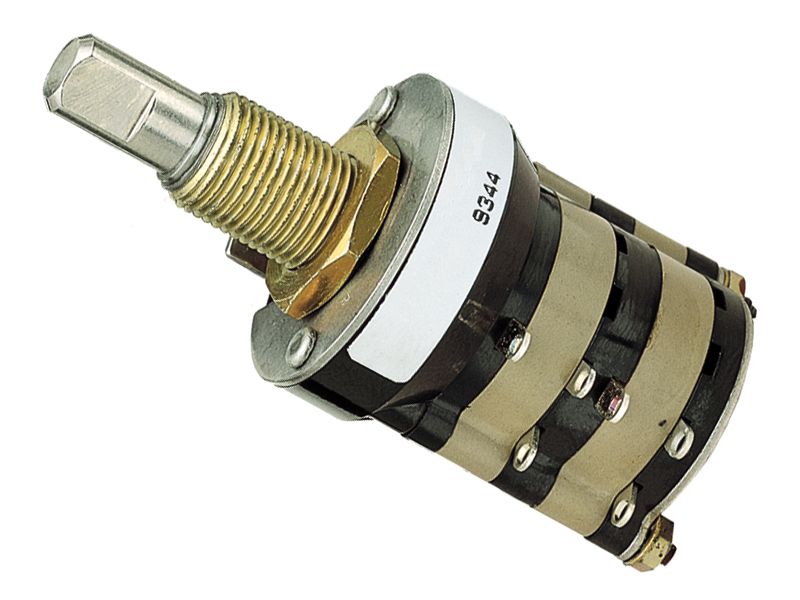

Rotary switch featuring a Double Pole Triple Throw (DP3T) configuration with 3 positions per deck. Offers 3 decks and 2 poles per deck, with a 60° index angle and fixed index stops. Rated for 5A at 115VAC and 28VDC, boasting an electrical life of 25,000 cycles and a mechanical life of 100,000 cycles. Equipped with a stainless steel actuator measuring 11.1mm and silver contacts for non-shorting operation. Panel mountable with solder lug termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 44A60-03-2-03N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 11.1mm |
| Actuator Material | Stainless Steel |
| Contact Material | Silver |
| Contact Style | Non-Shorting |
| Current Rating | 1A |
| Electrical Life | 25000Cycles |
| Index Angle | 60° |
| Index Stops | Fixed |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 100000Cycles |
| Mount | Panel |
| Number of Decks | 3 |
| Number of Poles per Deck | 2 |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | 44 |
| Termination | Solder |
| Throw Configuration | DP3T |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 28V |
| Weight | 62g |
| RoHS | Compliant |
