Grayhill
44D30-03-4-AJN
Rotary Switch, 3 Positions, 4P3T, Latched, 1A, 28VDC, Screw Terminal, Single Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 44D30-03-4-AJN technical specifications.
General
Actuator Length
11.1mm
Actuator Material
Stainless Steel
Contact Material
Silver
Contact Style
Non-Shorting
Electrical Life
25000Cycles
Index Angle
30°
Index Stops
Adjustable
Max Voltage Rating (AC)
115V
Max Voltage Rating (DC)
115V
Mechanical Life
100000Cycles
Mount
Panel
Number of Decks
3
Number of Poles per Deck
4
Orientation
Straight
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
44
Termination
Solder
Throw Configuration
4P
Voltage Rating (AC)
115V
DC Rated Voltage
28V
Weight
62g
Compliance
RoHS
Compliant
Datasheet
Grayhill 44D30-03-4-AJN Datasheet
Download the complete datasheet for Grayhill 44D30-03-4-AJN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

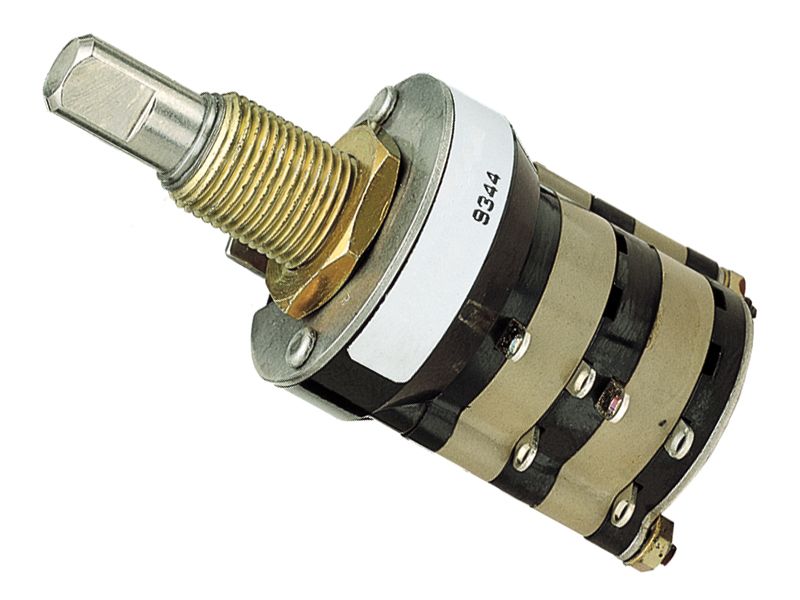

Product Images
