Grayhill
44L45-01-2-03S
Keylock Switch, DP3T, Latched, 1A, 28VDC, Solder Terminal, Panel Mount-threaded, ROHS COMPLIANT
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 44L45-01-2-03S technical specifications.
General
Contact Material
Silver
Electrical Life
25000Cycles
Index Angle
45°
Max Voltage Rating (AC)
115V
Max Voltage Rating (DC)
28V
Mechanical Life
100000Cycles
Mount
Panel
Number of Positions
3
Packaging
Bulk
RoHS Compliant
Yes
Series
44L
Switch Function
On-On-On
Termination
Solder
Throw Configuration
DP3T, DP
Voltage Rating (AC)
115V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Grayhill 44L45-01-2-03S Datasheet
Download the complete datasheet for Grayhill 44L45-01-2-03S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

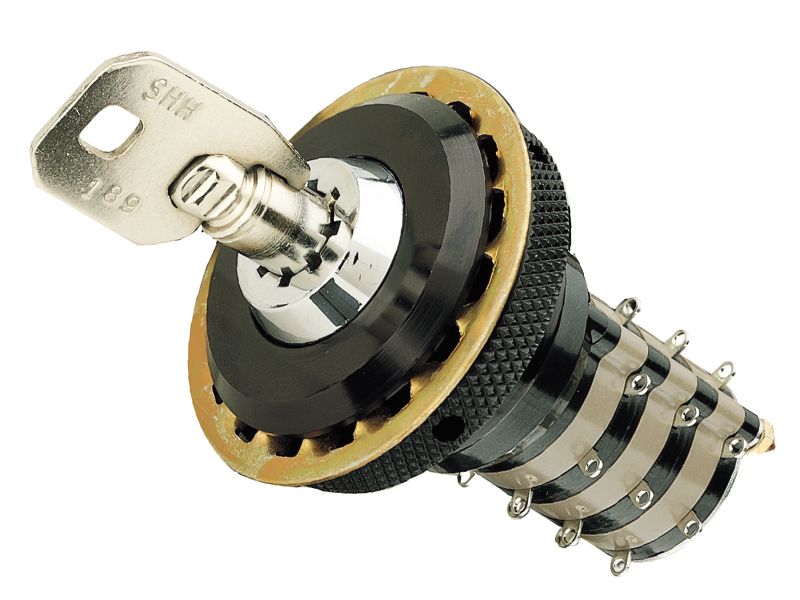

Product Images
