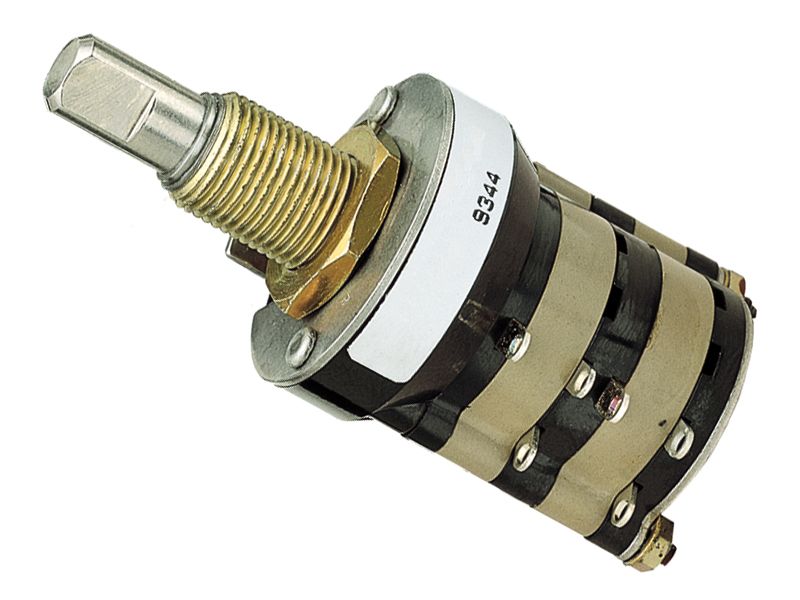

This Grayhill panel mount rotary switch features a 3P3T throw configuration with a maximum voltage rating of 115V AC and 28V DC. It has a mechanical life of 100000 cycles and is made with silver contact material. The switch is packaged in bulk and is RoHS compliant. It is designed for panel mount applications and has a fixed index angle of 30°.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 44S30-04-3-03N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 11.1mm |
| Contact Material | Silver |
| Index Angle | 30° |
| Index Stops | Fixed |
| Lead Free | Lead Free |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 115V |
| Mechanical Life | 100000Cycles |
| Mount | Panel |
| Number of Decks | 4 |
| Number of Poles per Deck | 3 |
| Number of Positions | 3 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 44 |
| Termination | Solder |
| Throw Configuration | 3P3T |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
