Technical Specifications

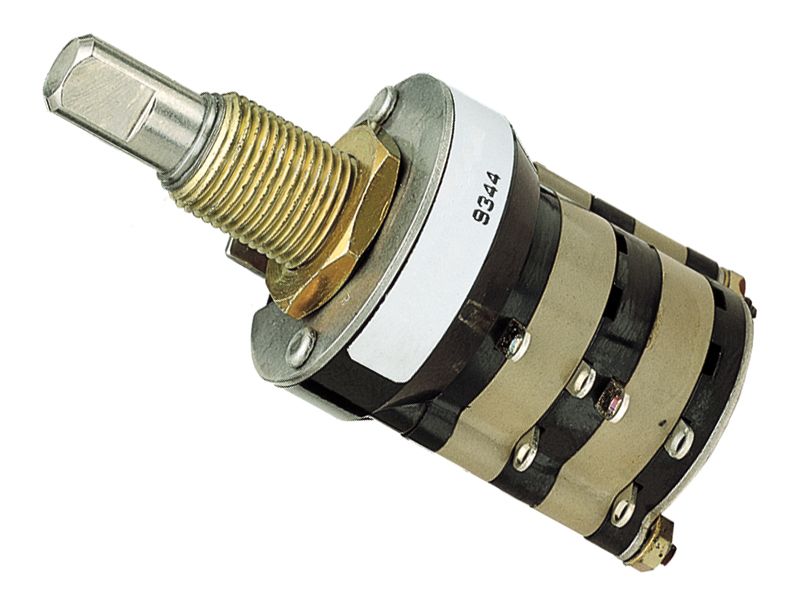

Grayhill 44UD30-02-3-AJN technical specifications.
General
Actuator Length
11.1mm
Contact Material
Silver
Current Rating
1A
Index Angle
30°
Index Stops
Adjustable
Max Voltage Rating (AC)
115V
Max Voltage Rating (DC)
115V
Mechanical Life
100000Cycles
Mount
Panel
Number of Decks
2
Number of Poles per Deck
3
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
44
Termination
Solder
Throw Configuration
3P
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
Grayhill 44UD30-02-3-AJN Datasheet
Download the complete datasheet for Grayhill 44UD30-02-3-AJN to view detailed technical specifications.
