MountingPanel, Flanges, Through Hole
Quick Jump:
Technical Specifications
Grayhill 47ASP2R2M2RT technical specifications.
General
Actuator Material
Nylon
Actuator Type
Paddle
Contact Material
Brass
Contact Plating
Nickel, Gold
Depth
9.27mm
Electrical Life
40000Cycles
Length
29.36mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Panel, Flanges, Through Hole
Packaging
Bulk
RoHS Compliant
Yes
Series
47A
Switch Function
On-Mom
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 47ASP2R2M2RT Datasheet
Download the complete datasheet for Grayhill 47ASP2R2M2RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

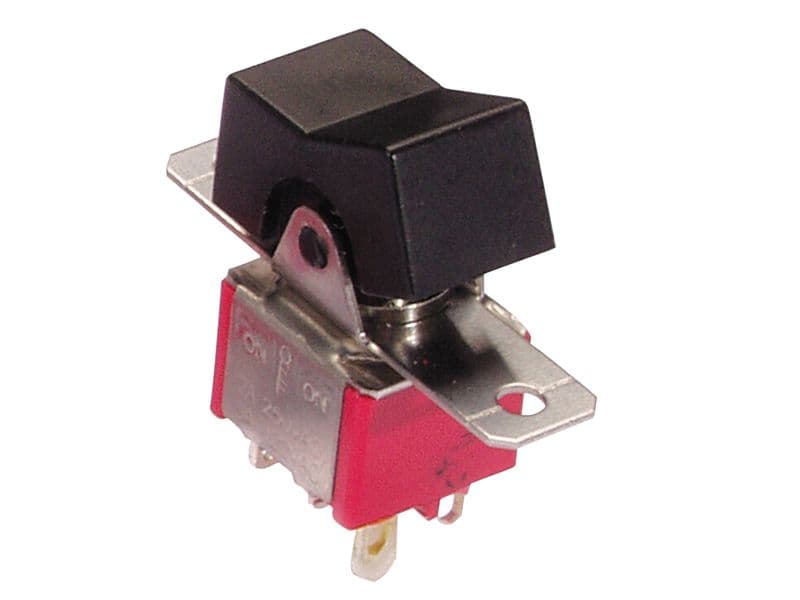

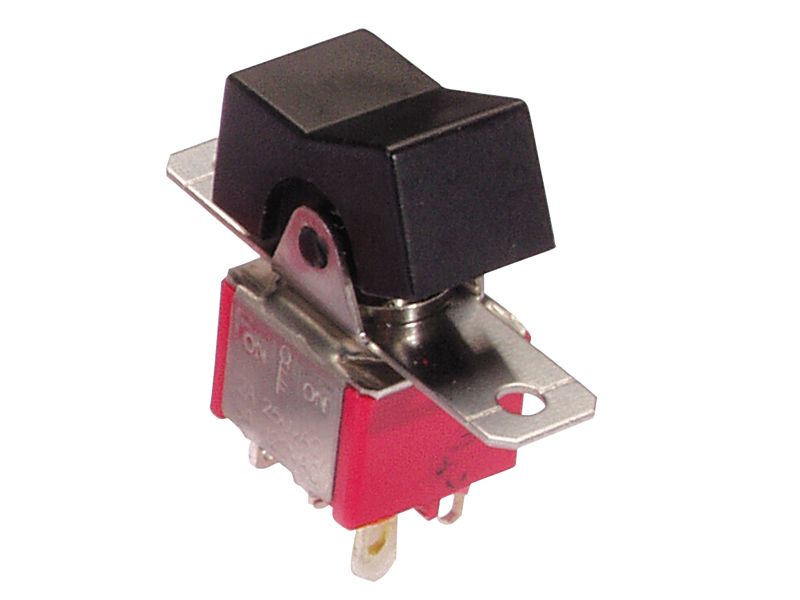

Product Images
