Grayhill
48ASSP3S1M7RAT
Switch Slide ON OFF ON SPDT Side Slide 20VAC 20VDC 0.4VA PC Pins Bracket Mount/Through Hole
MountingPanel, Vertical
Quick Jump:
Technical Specifications
Grayhill 48ASSP3S1M7RAT technical specifications.
General
Actuator Length
5.08mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Copper Alloy
Contact Plating
Gold
Electrical Life
30000Cycles
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Panel, Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
48A
Switch Function
On-Off-On
Switch Travel
2.16mm
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 48ASSP3S1M7RAT Datasheet
Download the complete datasheet for Grayhill 48ASSP3S1M7RAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

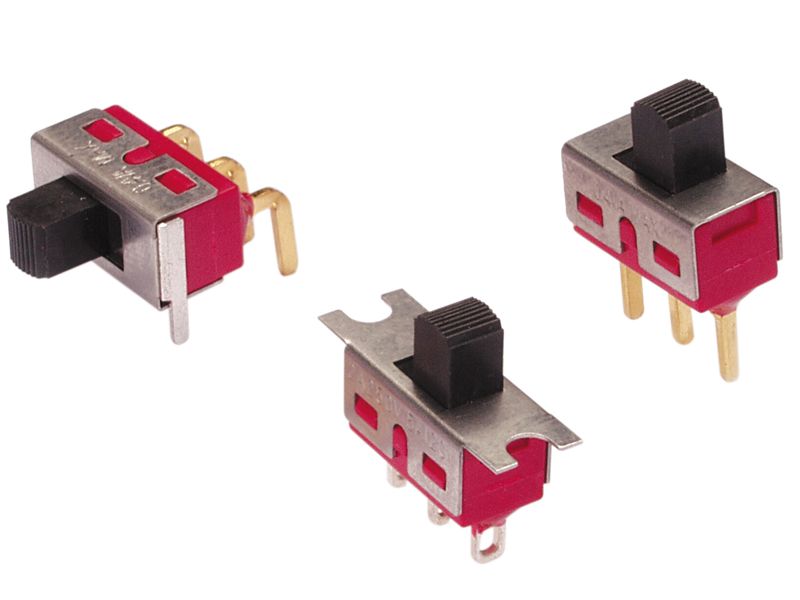

Product Images
