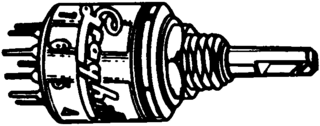

DP5T rotary switch featuring 5 positions and a latched, non-shorting contact style. Rated for 0.2A at 28VDC, with gold-plated metal contacts and solder terminals. This panel-mount component includes an adjustable stop type actuator with a stainless steel shaft and a 36° index angle. RoHS compliant and lead-free.
Current Rating200mA
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 50D36-01-2-AJN technical specifications.
General
| Actuator Length | 9.53mm |
| Actuator Material | Stainless Steel |
| Actuator Type | Shaft |
| Contact Material | Metal |
| Contact Plating | Gold |
| Contact Style | Non-Shorting |
| Current Rating | 200mA |
| Depth | 12.7mm |
| Diameter | 12.7mm |
| Index Angle | 36° |
| Index Stops | Adjustable |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Max Current Rating | 200mA |
| Max Voltage Rating (AC) | 220V |
| Max Voltage Rating (DC) | 28V |
| Mount | Panel |
| Number of Decks | 1 |
| Number of Poles | 2 |
| Number of Poles per Deck | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 50 |
| Termination | Solder |
| Throw Configuration | DP, DP5T, SP |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 50D36-01-2-AJN Datasheet
Download the complete datasheet for Grayhill 50D36-01-2-AJN to view detailed technical specifications.
