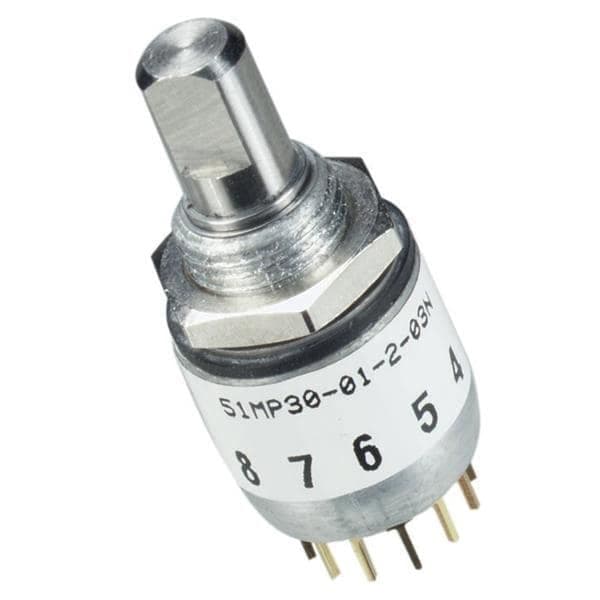

This 16-position rotary switch features a metal contact material with gold plating and a maximum voltage rating of 28V DC. It has a current rating of 200mA and is designed for through hole mount on a panel. The switch is lead free and RoHS compliant, making it suitable for a variety of applications. The actuator length is 9.53mm and the index angle is 22.5°, with fixed index stops.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 51P22-01-1-16N-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 9.53mm |
| Contact Material | Metal |
| Contact Plating | Gold |
| Current Rating | 200mA |
| Index Angle | 22.5° |
| Index Stops | Fixed |
| Lead Free | Lead Free |
| Max Voltage Rating (AC) | 220V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole, Panel |
| Number of Decks | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 16 |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | 51 |
| Termination | PC Pin |
| Throw Configuration | SP16T |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
