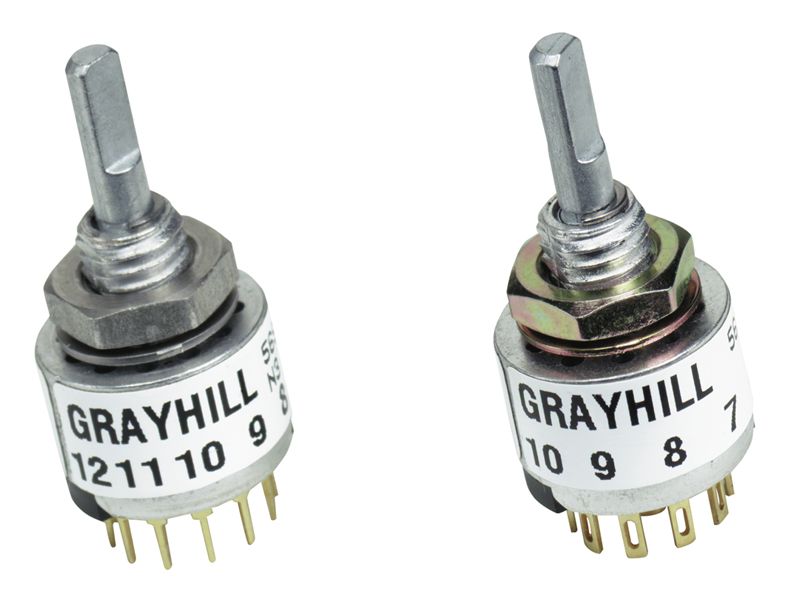

This 4-position 4PDT rotary switch features a zinc die cast actuator with a brass contact and silver-nickel plating. It has a maximum current rating of 200mA and a maximum voltage rating of 30V DC. The switch is designed for panel mount applications and is compliant with RoHS regulations. The actuator has a length of 9.53mm and an index angle of 30°, with fixed index stops. The switch is rated for use in environments with a maximum voltage rating of 115V AC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 56A30-01-4-02N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 9.53mm |
| Actuator Material | ZINC DIE CAST |
| Contact Material | Brass |
| Contact Plating | Silver, Nickel |
| Contact Style | Non-Shorting |
| Index Angle | 30° |
| Index Stops | Fixed |
| Max Current Rating | 200mA |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel |
| Number of Decks | 1 |
| Number of Poles per Deck | 4 |
| Number of Positions | 2 |
| Orientation | Straight |
| RoHS Compliant | Yes |
| Series | 56 |
| Termination | Solder |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
