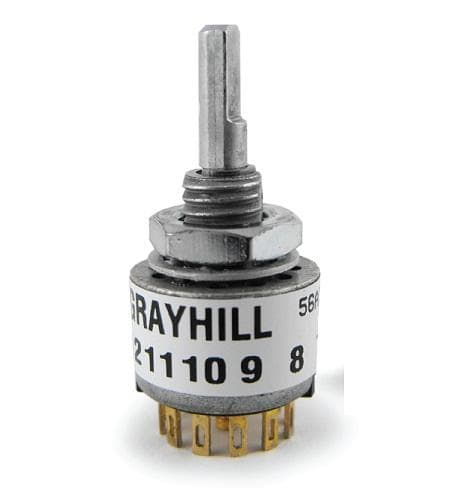

This 36° index angle DPDT rotary switch features a brass contact material with silver plating and a panel mount configuration. It has two positions and a voltage rating of 30V DC and 115V AC. The switch is part of the 56 series and has a termination of PC pin and a throw configuration of DPDT.
Checking distributor stock and pricing after the page loads.
Grayhill 56LP36-01-2-02N technical specifications.
| Contact Material | Brass |
| Contact Plating | Silver |
| Index Angle | 36° |
| Mount | Panel |
| Number of Positions | 2 |
| Series | 56 |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
No datasheet is available for this part.
