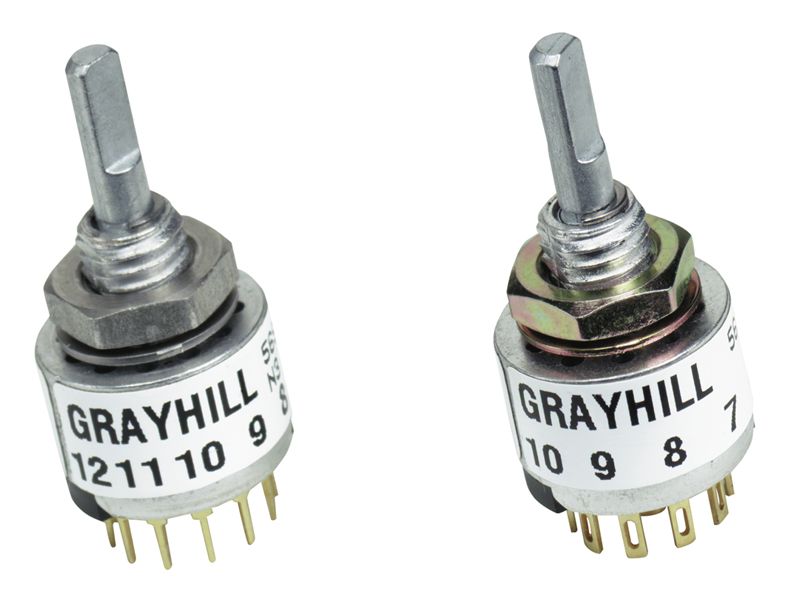

The 56P30-01-1-04N is a 30V DC rated, 115V AC rated, SP4T rotary switch from Grayhill. It features a through hole mount and is designed for use in applications where a high current rating of 200mA is required. The switch has a contact material of brass with a silver and nickel plating. It is RoHS compliant and has a maximum operating temperature range of an unspecified temperature range. The switch has a 9.53mm actuator length and a 30° index angle with fixed index stops.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 56P30-01-1-04N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 9.53mm |
| Contact Material | Brass |
| Contact Plating | Silver, Nickel |
| Index Angle | 30° |
| Index Stops | Fixed |
| Max Current Rating | 200mA |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole, Panel |
| Number of Decks | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 4 |
| RoHS Compliant | Yes |
| Series | 56 |
| Termination | PC Pin |
| Throw Configuration | SP4T |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
