The 61A8-250 is an optical encoder from Grayhill with a built-in detent mechanism. It features a panel mount design with a vertical orientation and provides a binary output signal. The encoder is RoHS compliant and available in a single unit quantity. The 61A series is a general-purpose encoder line from Grayhill.
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 61A8-250 technical specifications.
General
| Built in Switch | No |
| Detent | Yes |
| Encoder Type | Optical |
| Mount | Panel |
| Orientation | Vertical |
| Output Type | Binary |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | 61A |
| Termination | Cable |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 61A8-250 Datasheet
Download the complete datasheet for Grayhill 61A8-250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

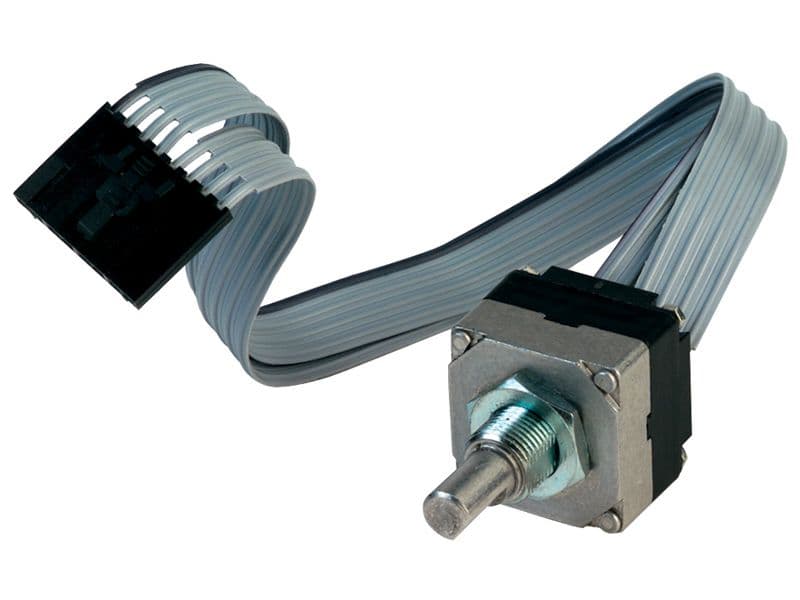

Product Images
